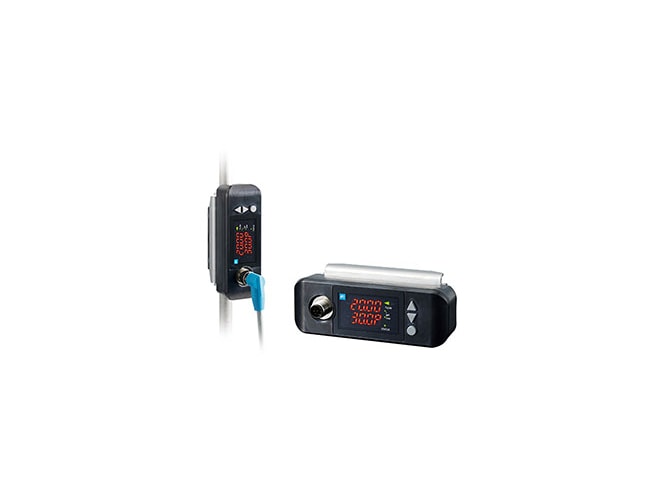

Fuji FSZ Ultrasonic Flow Meter

Clamp-on ultrasonic flowmeter that measures volumetric flow rate.

Starting at $1,230.50

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • 4 to 20 mA DC: 1 point
  • Contact: 2 points
  • 0.5 second response time
  • Transit-time measuring method
  • 0 to ±5 m/s (Min. 0 to ±0.2 m/s) measurement range
  • 1.2 mm to 4.9 mm piping thickness
  • -15 to 85°C (Can vary depending on ambient temperature)

The Fuji FSZ Ultrasonic Flow Meter features a 4 screw clamp-on style and requires no pipe modification. Configurable with only three buttons- turn on, configure four settings, and start measuring immediately. Special rubber is used to keep the pipe in close contact instead of grease.

In addition to piping for pure water manufacturing processes, cleaning processes, and equipment cooling, it can also be mounted inside equipment where there is densely-spaced small-diameter piping. A built-in temperature measurement function enables simultaneous measurement of flow rate and temperature.

The FSZ can be installed to cold and hot water piping throughout the entire building. By measuring the flow rate, it facilitates more efficient fan coil unit (FCU) operations. Similarly, it also facilitates efficient operation of air handling units (AHU) for large spaces. The monitoring of flow rates contributes to energy savings.

Fuji Dedicated Signal Cable
Fuji Dedicated Signal Cable

Dedicated signal cable for use with the FSZ ultrasonic flow meter, 3-meter and 10-meter lengths.

Starting at $100.31
Part Number Pipe Size Power Supply Option Price Available
FSZ08YT1
Show Full Configuration
1/4" or 3/8"
20 to 27.5 V DC
With Pipe Temperature Sensor
 $1,271.74 3 in stock
FSZ15YT1
Show Full Configuration
1/2" or 3/4"
20 to 27.5 V DC
With Pipe Temperature Sensor
 $1,378.74 3 in stock
FSZ25YT1
Show Full Configuration
1" or 1-1/4"
20 to 27.5 V DC
With Pipe Temperature Sensor
 $1,405.49 3 in stock
FSZ08YY1
Show Full Configuration
1/4" or 3/8"
20 to 27.5 V DC
None
 $1,230.50 2 in stock
FSZ15YY1
Show Full Configuration
1/2" or 3/4"
20 to 27.5 V DC
None
 $1,337.50 1 in stock
FSZ25YY1
Show Full Configuration
1" or 1-1/4"
20 to 27.5 V DC
None
 $1,364.25 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 8-10 weeks ". Click here to select options
