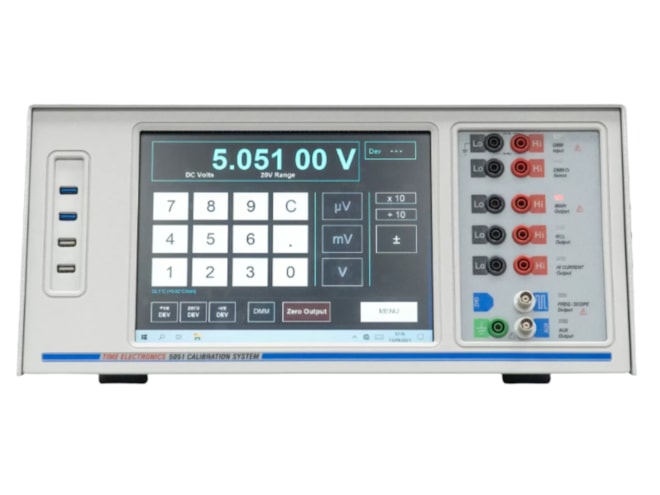

Time Electronics 5051Plus Multifunction Calibration System

Combines a precision multifunction calibrator, 6.5 digit multimeter, and industrial touch screen PC.

Select options for pricing
Effective May 2nd, 2025 Time Electronics has added a 10% surcharge for all of their products. The surcharge will appear as a separate line item on the order.

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability

Features

  • 0 to 1050 V & 0 to 22 A (AC/DC)
  • Source up to 1 GΩ resistance
  • Thermocouple simulate & measure
  • Pt100 simulate & measure
  • Capacitance and inductance
  • Oscilloscope calibration
  • Clamp meter calibration
  • EasyCal Software included

The Time Electronics 5051Plus Multifunction Calibration System offers high performance calibration, maximum functionality, and provides the foundation for an efficient calibration program. By integrating the calibrator, multimeter and PC in one unit, minimal bench space is used in the laboratory.

With automatic source and measure capabilities the system can calibrate a wide range of products quickly and efficiently. Test and verify multimeters, clamp meters, decade boxes, thermocouple indicators and sensors, tacho meters, frequency meters, oscilloscopes, timer counters, RTDs and much more.
