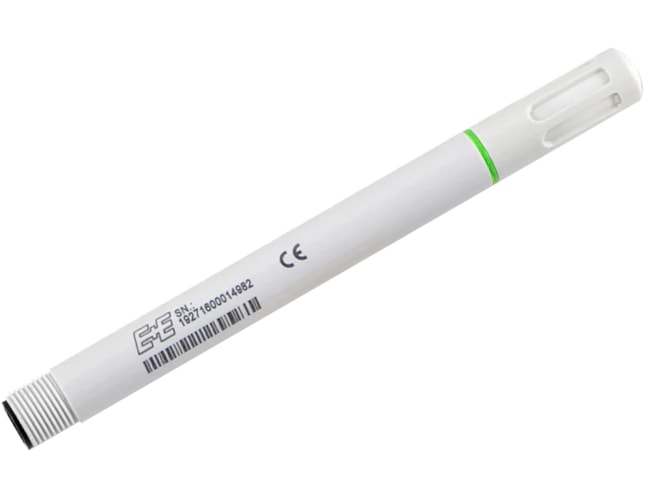

E+E EE072 Humidity and Temperature Probe

CANopen or Modbus RTU probe, measures relative humidity, temperature, and calculates all other humidity related parameters.

Starting at $422.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs (2 Files)

Features

  • 0 to 100% RH humidity measuring range
    • ±1.3% RH accuracy
    • 0.01% RH resolution
  • -40 to 80°C (-40 to 176°F) temperature measuring range
    • ±0.1°C at 20°C accuracy
    • 0.01°C resolution
  • 10 to 28 VDC power supply
  • Modbus RTU (RS485) or CANopen output
  • M12x1 connector
  • Polycarbonate or stainless steel housing
  • E+E proprietary coating on sensor element
  • IP65 protection rating

The E+E EE072 humidity and temperature probe meets the requirements of demanding process and climate control applications such as agriculture, life stock, food, pharma, clean rooms, outdoor, artificial snow machines and transportation.

The EE072 has the ability to measure relative humidity (RH) and temperature (T) and also calculates all other humidity related parameters.

  • Dew point (Td)
  • Frost point (Tf)
  • Wet bulb temperature (Tw)
  • Ice bulb temperature (Ti)
  • Water vapour partial pressure (e)
  • Mixture ratio (r)
  • Absolute humidity (dv)
  • Specific enthalpy (h)

The EE072 humidity sensing element is manufactured with state-of-the-art thin film technology for high measurement accuracy. The sensing element is protected by the E+E proprietary coating against corrosive and electrically conductive pollution. The robust sensing head in combination with fully encapsulated electronics, the EE072 provides highly accurate and stable measurements in multiple types of harsh environments.

E+E HA010705 M12x1 Flange Coupling
E+E HA010705 M12x1 Flange Coupling

With 2 inch (50mm) flying leads .

In Stock
$13.00
E+E HA010707 4-Pose Socket M12 Cable Connector
E+E HA010707 4-Pose Socket M12 Cable Connector

4-pole, self assembly M12x1 .

$26.00
E+E M12x1 5pin connection cable
E+E M12x1 5pin connection cable

M12x1 5pin connection cable socket/flying leads 1.5m, 5m and 10m lengths available.

Starting at $42.00
E+E HA030204 T-Coupler M12
E+E HA030204 T-Coupler M12

T-coupler M12.

$44.00
E+E HA010502 Radiation Shield
E+E HA010502 Radiation Shield

Radiation shield with clamping ring.

$369.00
E+E HA010781 Protection Cap
E+E HA010781 Protection Cap

Protection cap for M12 female cable connector .

$13.00
E+E HA010782 Protective Cap
E+E HA010782 Protective Cap

Protective cap for M12 male connector.

$13.00
E+E HA010202 Plastic Mounting Flange
E+E HA010202 Plastic Mounting Flange

Plastic mounting flange 12mm; RAL7035.

$55.00
E+E HA010201 Mounting Flange
E+E HA010201 Mounting Flange

Stainless steel mounting flange 12mm.

$155.00
E+E HA010209 Duct Mounting Kit
E+E HA010209 Duct Mounting Kit

Duct mounting kit for the EE220 Series.

$323.00
E+E HA010106 Metal Grid Filter Cap
E+E HA010106 Metal Grid Filter Cap

Polycarbonate housing and stainless steel mesh filter, up to 120°C for 12mm probe.

$78.00
E+E HA010105 PTFE Filter Cap
E+E HA010105 PTFE Filter Cap

PTFE sintered body for dirty, oily, or polluted environments.

$98.00
E+E HA010101 Membrane Filter Cap
E+E HA010101 Membrane Filter Cap

Polycarbonate body with PTFE membrane filter for dusty environments.

$55.00
E+E HA010115 H2O2 Filter Cap
E+E HA010115 H2O2 Filter Cap

Sintered PTFE catalytic filter for H₂O₂ environments.

$452.00
E+E M12 1.5m Connection Cable
E+E M12 1.5m Connection Cable

Connection cable CAN with 120 Ω termination, M12 / 1.5 m .

$235.00
E+E HA010503 Drip Water Protection
E+E HA010503 Drip Water Protection

Drip water protection.

$114.00
E+E HA010708 M12 Cable Connector
E+E HA010708 M12 Cable Connector

Self assembly, 5 pin.

$13.00
E+E HA010783 Protection Cap
E+E HA010783 Protection Cap

Protection cap for 12mm probe.

$13.00
E+E HA011021 CAN Configuration Adapter
E+E HA011021 CAN Configuration Adapter

USB Converter CAN-Bus M12.

$989.00
E+E HA010211 Wall Mounting Clip
E+E HA010211 Wall Mounting Clip

Mounting Clip Ø12 mm.

$13.00
