Starting at $32,995.00
  • Usually ships in 2-3 weeks



  • Automated pressure generation and control to 10,000psi (700bar)
  • Accuracy to 0.01%FS
  • Dual-range calibration
  • Control stability ≤0.005% FS
  • Portable - designed for use in the field and in the lab
  • Control by external pressure modules
  • Supports two external pressure modules
  • Wi-Fi, LAN, Bluetooth, USB and Ethernet communication
  • Full HART field communicator
  • HART and profibus communication
  • Data logging and task management
  • Patented electric pump technology
  • 350ml reservoir maximum

What's in the Box

  • 1220V/220V external power adapter
  • Rechargeable Li-ion battery
  • ADT100-762 high pressure hose
  • Small accessory case
  • Carrying case
  • USB cable
  • Transportation cap
  • Sebecate oil
  • O rings for liquid storage tank
  • O rings for right angle connector
  • Pressure module connection cable
  • ADT100-762-X
  • ISO 17025 accredited calibration certificate with data

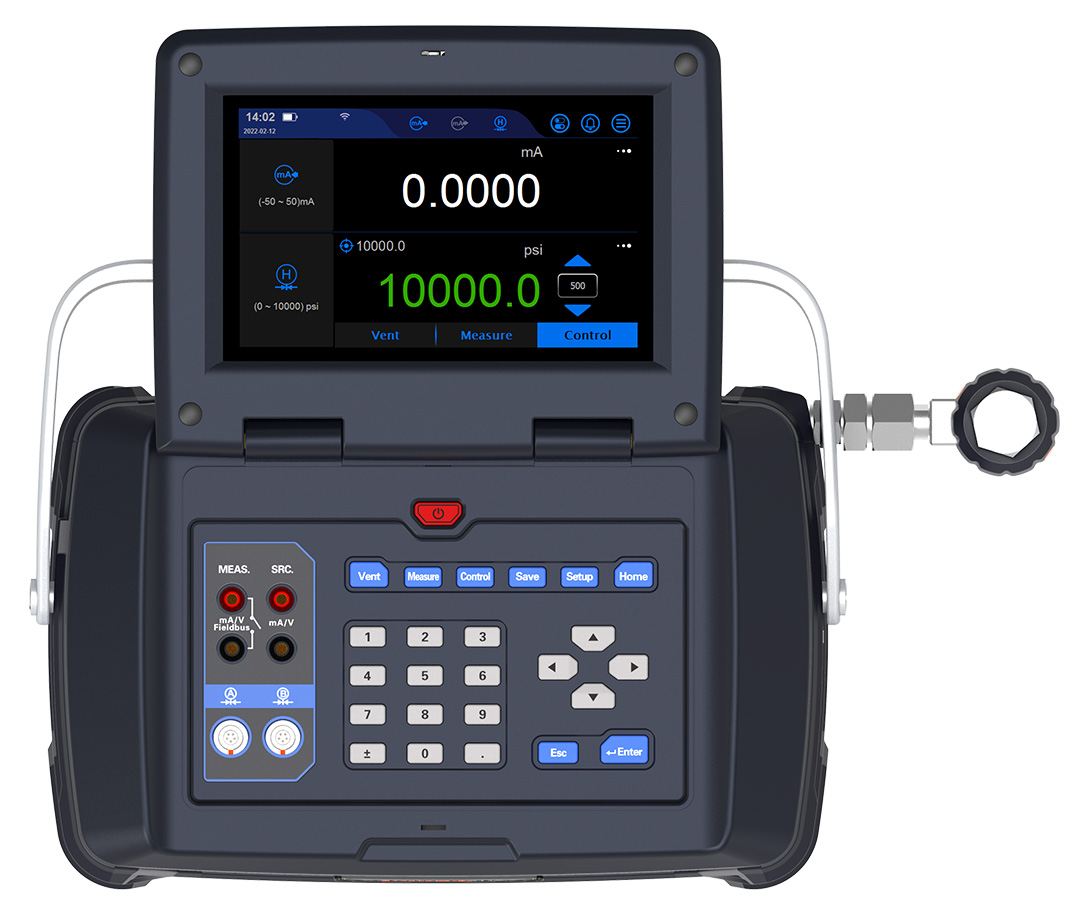

The Additel ADT762  is a turnkey solution for automation of pressure calibration work up to 10,000 PSI. The ADT762 was designed for use in both field and the laboratory, and features fully automated support for calibration of pressure transmitters, switches, dial and digital gauges and sensors, including HART/PROFIBUS devices in conjunction with a fully integrated task feature, data collection and Wi-Fi connectivity.

The ADT762 is offered in two distinct models based on accuracy. Both 0.01%FS and 0.02%FS are available, with each unit including the ability to automatically select between different internal calibrations depending on the current control pressure of the ADT762 (also known as dual-range calibration). As the calibrator is pressurized, it will automatically select the range with the lowest uncertainty for any specific control pressure. With a patented built-in pump and fluid management system, the ADT762 hydraulic pressure calibrator provides users with portable automated pressure generation and control. The ADT762 also features HART and PROFIBUS communication capabilities for use with UUT’s. With 8GB of internal data storage, users can store up to 1,000,000 time and date stamped readings.
