Starting at $59.00
  • Usually ships in 20 weeks

Overview

Features

  • Low power dissipation output Mosfet
  • 100 ADC maximum output current up to 60 VDC
  • 50 ADC maximum output current up to 200 VDC
  • 10 ADC maximum output current up to 500 VDC
  • Switching frequency up to 1000 Hz
  • 4-32 VDC control voltage range
  • LED for control presence indication
  • Clip-on IP 20 protection cover
  • Self-lifting terminals
  • Housing free of moulding mass

Description

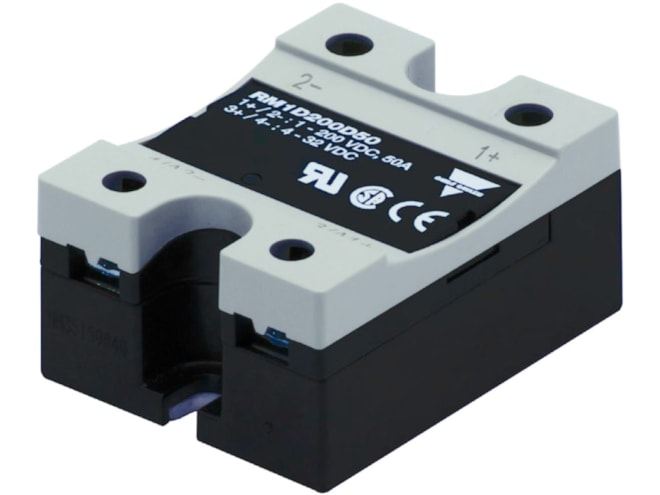

The Carlo Gavazzi RM1D solid state relays expands Carlo Gavazzi's range of DC solid state switching solutions up to 100A for supply voltages up to 60 VDC, up to 50 A for supply voltages of maximum 200 VDC and up to 10 A for supply voltages of maximum 500 VDC. This new range is suitable for panel mounting or for mounting on a heatsink. The switching of the RM1D is controlled by a DC voltage in the range of 4 to 32 V. An LED indicates control voltage presence on the SSR.

The RM1D is the ideal solution when switching response times, from ON to OFF and vice versa, are critical to the application. Being fully solid state, the RM1D is the obvious choice for applications necessitating a high number of switching cycles since the SSR lifetime is not compromised by such switching.
