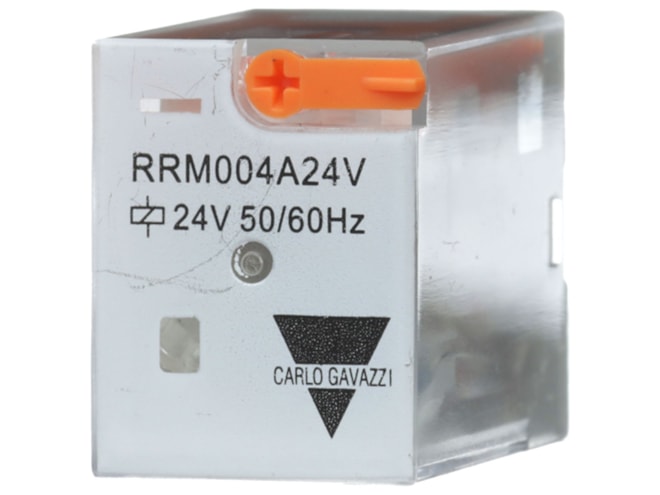

Carlo Gavazzi Type RRM Monostable Relay

Industrial relay with 10A max switching current and up to 240VDC/110VDC coil voltage.

Retired products cannot be ordered

Please contact Instrumart for a recommended replacement

View Company Reviews

Manufactured

By Carlo Gavazzi

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Specs

Features

8 or 14 blade socket mounting
2 or 4 change over contacts
10A max switching current (DPDT version)
250 VAC/VDC max switching voltage
AC coils: 12 to 240VAC
DC coils: 12 to 110VDC
100,000 cycle electrical life
10,000,000 cycle mechanical life
DIN sockets with two terminal layout options
UL, CSA, CE, & ROHS approvals

The Carlo Gavazzi Type RRM Monostable Relay can be used in a wide range of applications such as control panels, HVAC systems, pumps and compressors, and electronic and consumer products. The RRM is typically used to switch loads such as heaters, lights, and motors. It is available in 2 or 4 change over contact and 8 or 14 blade socket mounting configurations.
