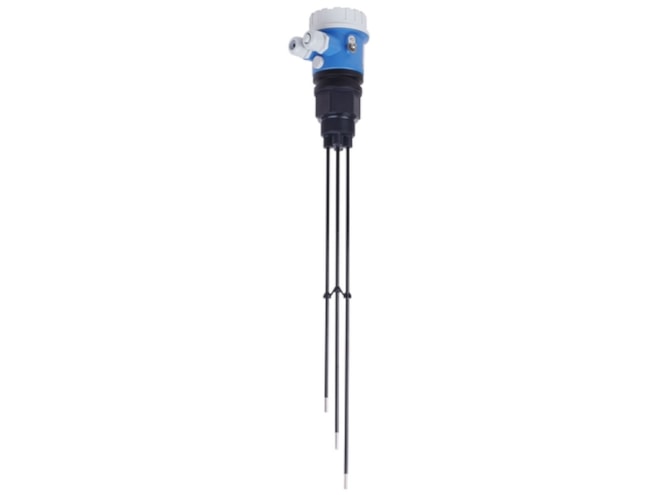

E+H Liquipoint T FTW31 Level Switch
Rod probe for multipoint detection for up to 5 switch points.
Effective August 22nd, 2025, Endress+Hauser has added a 8.4% surcharge to this product. The surcharge will appear as a separate line item on the order.
- By Endress+Hauser
- Made in the USA
-
Manufacturer has some models in stock. View available part numbers.
Overview
Features
- Detection of up to five point levels
- No calibration required
- 0.1 to 4m (3.9 to 157") sensor length
- Threaded process connections
- 10 µS/cm min. conductivity of medium
- No moving parts in the tank
- -40 to 100°C (-40 to 212°F) temperature range
- -1 to 10 bar (-14.5 to 145 psi) pressure range
- International explosion protection certificates
- Extended 5-year warranty, please contact an engineer for details
Description
The E+H Liquipoint T FTW31 level switch is used for point level measurement in conductive liquids (from 10 µS/cm). Depending on the number of measuring points (up to 5 rods or ropes), measuring tasks such as overfill protection, dry running protection, two-point control of pumps or multiple point detection can be implemented.
Documents
In Stock
Additional Part Numbers
These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.
| Part Number | Price | Available | |
|---|---|---|---|
| FTW31-A2A3BB4A 24,00" | Call for information | 1 | Call to order |
| FTW31-A2A2BB0A 36.00" | Call for information | 4 | Call to order |
| FTW31-A2A5BB0A 20.00" | Call for information | 9 | Call to order |
| FTW31-A2A3IB4A | Call for information | 1 | Call to order |
Interested in Other Part Numbers?
Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
