Optris CT 4M Infrared Temperature Sensor

High speed fixed infrared pyrometer for fast, accurate temperature measurements from 0 to 500 °C.

Starting at $850.00

View Company Reviews
Manufactured
Includes
Availability
Product Family
Product Manual Product Specs

Features

  • Temperature range: 0°C to 500°C (32 °F to 932 °F)
  • Accurate to ±(0.3% of reading + 2°C)
  • Repeatability: ±(0.1% of reading + 1°C)
  • Temperature resolution (display): 120 mK
  • Ultra-fast 90 µs exposure time
  • The miniaturized head is just 14 mm (diameter) x 28 mm (length) allowing it to fit almost anywhere
  • Usable up to 70 °C (158 °F) without cooling
  • Short wavelength range of 2.2 – 6 µm makes it suitable for measurement of metals, metal oxides, ceramics or materials with unknown or changing emissivity
  • Response time: 300 μs
  • IP 65 (NEMA-4) rated
  • Analog and digital output
Trying to find effective aperture or spot size for your camera? Use our Optics Calculator or Spot Size Calculator.

What's in the Box

  • Mounting nut
  • 1m high-temperature head cable
  • Electronic box with LCD display and programming keys
  • Operators manual

The Optris CT 4M infrared temperature sensor is designed for high-speed, low-temperature measurements.

Due to its short measuring wavelength and a temperature range from 0°C to 500 °C (32 °F to 932 °F), the CT 4M, is ideally suited for measuring the temperature of metals, metal oxides, ceramics, or materials with unknown or changing emissivity. The quick response time of only 300 μs along with the ultra-fast 90 μs exposure time allows for problem-free use in fast processes.

The electronics box of the CT 4M allows a flexible terminal device through selectable analog outputs as well as various optional digital interfaces.

Calibration

Optris ACCTHTCERT Calibration Certificate
Optris ACCTHTCERT Calibration Certificate

Calibration with 3 reference temperatures for CT models 1M, 2M, 3M, 4M, G5, P3 & P7.

$150.00

Cables

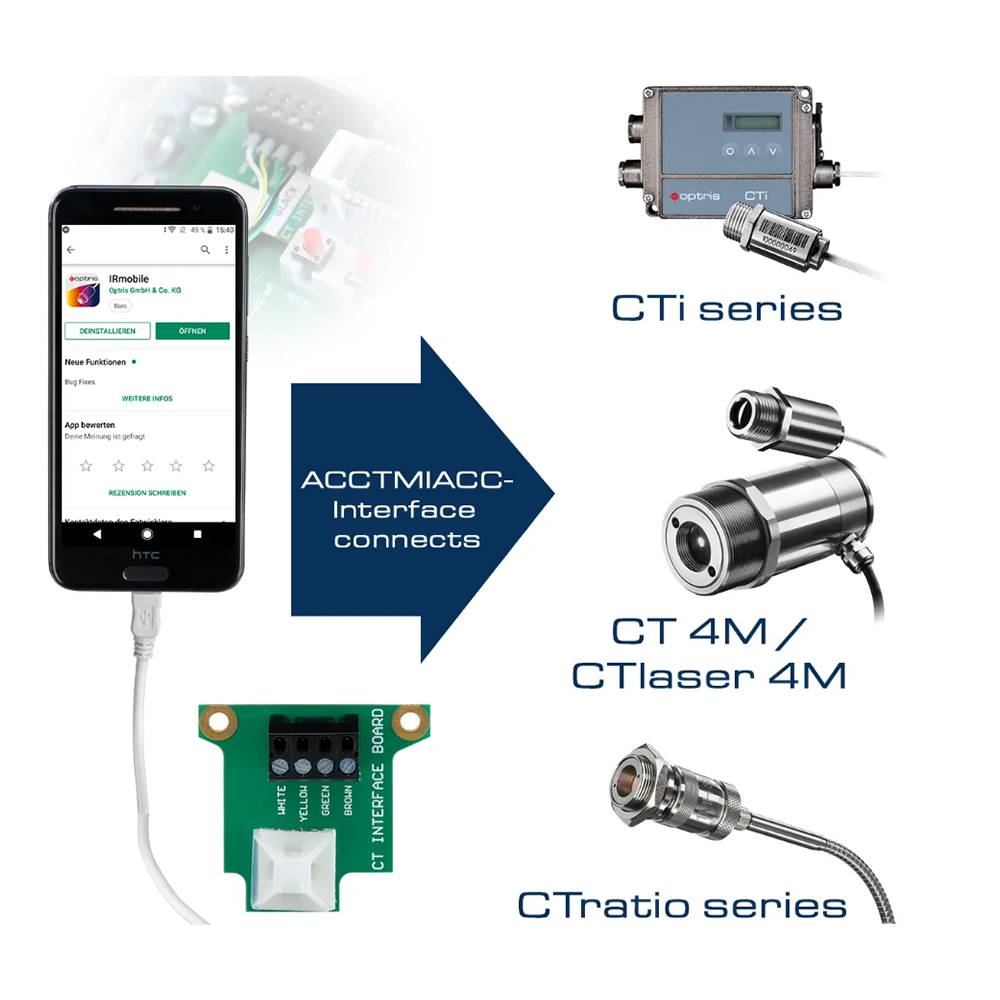

Optris ACCTMIAC IR App Connector
Optris ACCTMIAC IR App Connector

USB cable and adapters for USB-C and USB-A, compatible with IRmobile (Android) and CompactConnect (Windows), for use with Optris CT 4M, CTL 4M and CTratio.

Mfg. has stock
$85.00

Software

Optris Compact Connect Software
Optris Compact Connect Software

Temperature analysis software for simple and fast parameterization of compact and high performance fixed IR thermometers.

$0.00

Air Purge

Optris ACC Air Purge Collar
Optris ACC Air Purge Collar

Available for optics ≥10:1, ≤2:1, laminar & laminar with integrated CF-lens.

Mfg. has some models in stock
Starting at $38.00
Optris ACCTAPMH Air Purge Collar
Optris ACCTAPMH Air Purge Collar

For massive housing, M18x1 thread.

Mfg. has stock
$95.00

Mounting Bracket

Optris ACCTMB Mounting Bolt
Optris ACCTMB Mounting Bolt

M12 x 1 thread, adjustable in one axis .

Mfg. has stock
$28.00
Optris ACCTMG Mounting Fork
Optris ACCTMG Mounting Fork

M12 x 1 thread, adjustable in two axes, compatible with CT / CS ACCTFB fixed single axis mounting bracket.

Mfg. has stock
$65.00
Optris ACCTRAIL Rail Mount Adapter
Optris ACCTRAIL Rail Mount Adapter

Mounts CT electronics on a DIN rail.

Mfg. has stock
$26.00
Optris ACCTFBMH Mounting Bracket
Optris ACCTFBMH Mounting Bracket

Single axis mounting massive housing bracket designed to be used with 18mm (M18) massive housing diameter.

Some Models in Stock
Starting at $28.00

Interface

Optris CT Series Digital Interface
Optris CT Series Digital Interface

Relay, RS485, RS232, USB, RS485/422, Modbus RTU, CAN-Bus & Profibus-DPv1 interfaces.

Mfg. has some models in stock
Starting at $65.00

Sighting Tube

Optris CT Laser Sighting Tool
Optris CT Laser Sighting Tool

For aligning CT sensing heads, hardwired to CT electronics or battery powered options, available with 1, 3 or 8m connection cable.

Mfg. has some models in stock
Starting at $60.00
Optris Sighting Tube
Optris Sighting Tube

M12x1 external thread, available in 20, 40 & 88mm length.

Mfg. has some models in stock
Starting at $28.00

Protection

Optris ACCTPWHT Protective Window
Optris ACCTPWHT Protective Window

For CT 1M, 2M & 3M series, same mechanical size as CF lens, available with external thread M12x1.

Mfg. has some models in stock
Starting at $65.00

Accessories

Please consider these optional accessories.

Optris CT / CSmicro Massive Housing
Optris CT / CSmicro Massive Housing

Stabilizes measurements in applications with significant & short-term variations in ambient temperatures.

Mfg. has some models in stock
Starting at $135.00
Optris ACCTCFHT CF Lens
Optris ACCTCFHT CF Lens

For CT 1M, 2M & 3M series, available with external thread M12 x 1.

Mfg. has some models in stock
Starting at $105.00
Optris ACCTRAM Right Angle Mirror
Optris ACCTRAM Right Angle Mirror

Enables measurements with 90° angle to sensor axis, for sensing heads with optical resolution ≥10:1.

Mfg. has stock
$75.00
Optris ACCTTAM25 Thread Adapter
Optris ACCTTAM25 Thread Adapter

M12x1 to M25x1.5 thread adapter includes 2 mounting nuts .

Mfg. has stock
$53.00
Optris ACCTPWSI35M Protective Window
Optris ACCTPWSI35M Protective Window

Protective window for 4M Infrared Temperature Sensor.

Starting at $65.00

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTCT4MLCFCB3
Show Configuration
$850.00 2 in stock
OPTCT4MLSFCB3
Show Configuration
$850.00 2 in stock
OPTCT4MLSFCB8
Show Configuration
$945.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 6 weeks". Click here to select options
