• Bullseye laser pointer
  • MSX® image enhancement
  • 4,800 pixels (80 x 60)
  • 24:1 distance to spot ratio
  • -13 to 572°F (-25 to 300°C) measuring range
  • 51° × 66° field of view
  • 2.4 inch display screen
  • ±3°F(±1.5°C) accuracy
  • 6 color pallets
  • JPEG file format (non-radiometric)
  • IP54 enclosure
  • Built to withstand a 2 meter drop

What's in the Box

  • TG165-X
  • Wrist strap lanyard
  • USB Type C cable
  • Pouch
  • Printed documentation

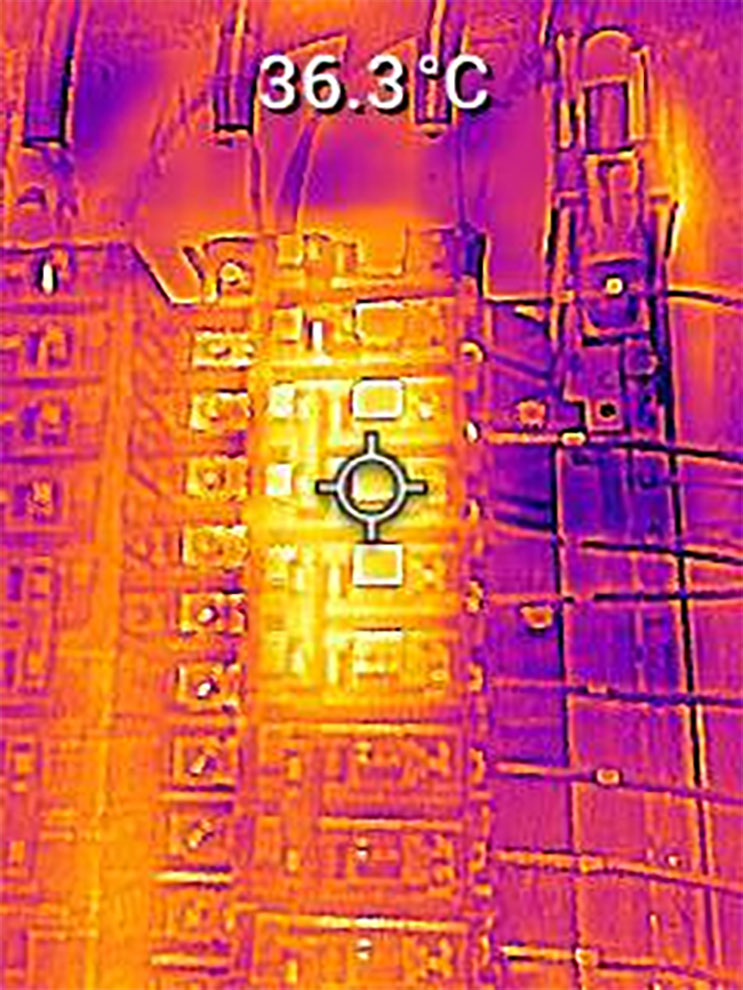

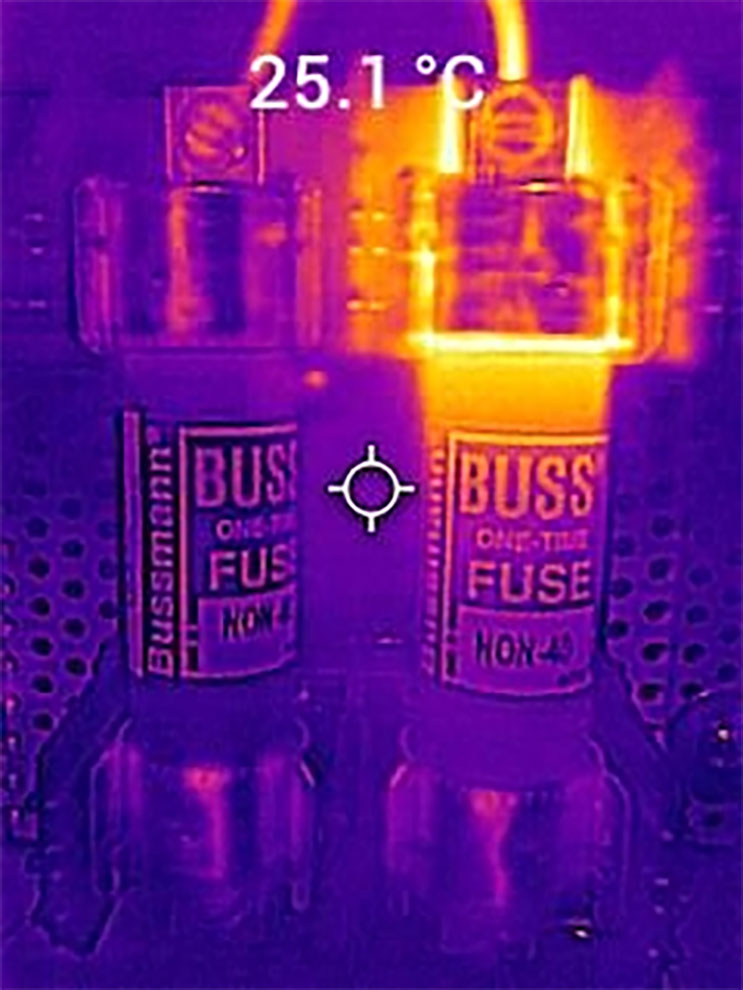

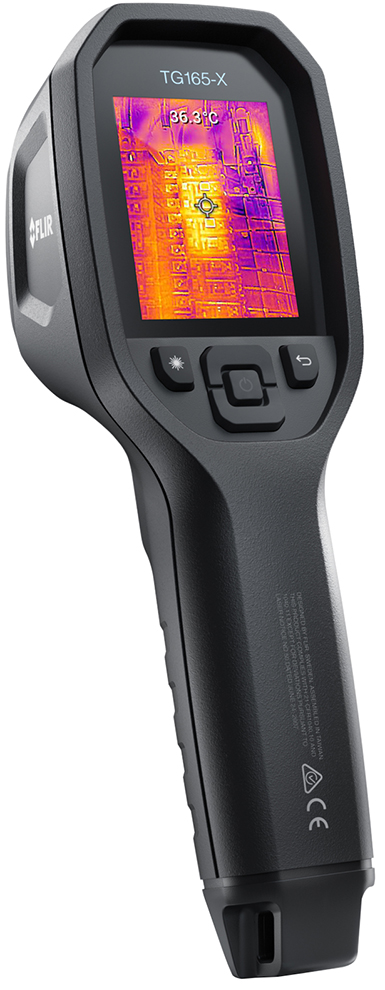

The FLIR TG165-X Thermal Camera combines non-contact temperature measurement and thermal imaging into one troubleshooting tool to help visually identify and track down the source of many common issues in electrical and mechanical systems, or throughout facilities. The TG165-X dramatically reduces inspection and diagnostic time by helping visually pinpoint the source of electrical, mechanical, and HVAC/R system faults. Instead of searching for temperature anomalies with a single-spot IR thermometer, this non-contact temperature measurement and imaging tool displays a thermal picture of the target including any hot spots or cold zones that could indicate a problem. See wires or components clearly and even read labels with FLIR's patented MSX image enhancement, which adds visual details to full thermal images. The bullseye laser helps ensure you're always targeting the right component for measurement while the drop-tested, portable design with easy-to-use buttons and settings help you complete the job quickly and easily. With internal storage for up to 50,000 images and rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

Applications of the FLIR TG165-X MSX Thermal Camera

  • Building & Facilities Management
  • Mechanical & Electrical Building Diagnostics
  • Manufacturing
  • Home Inspections
