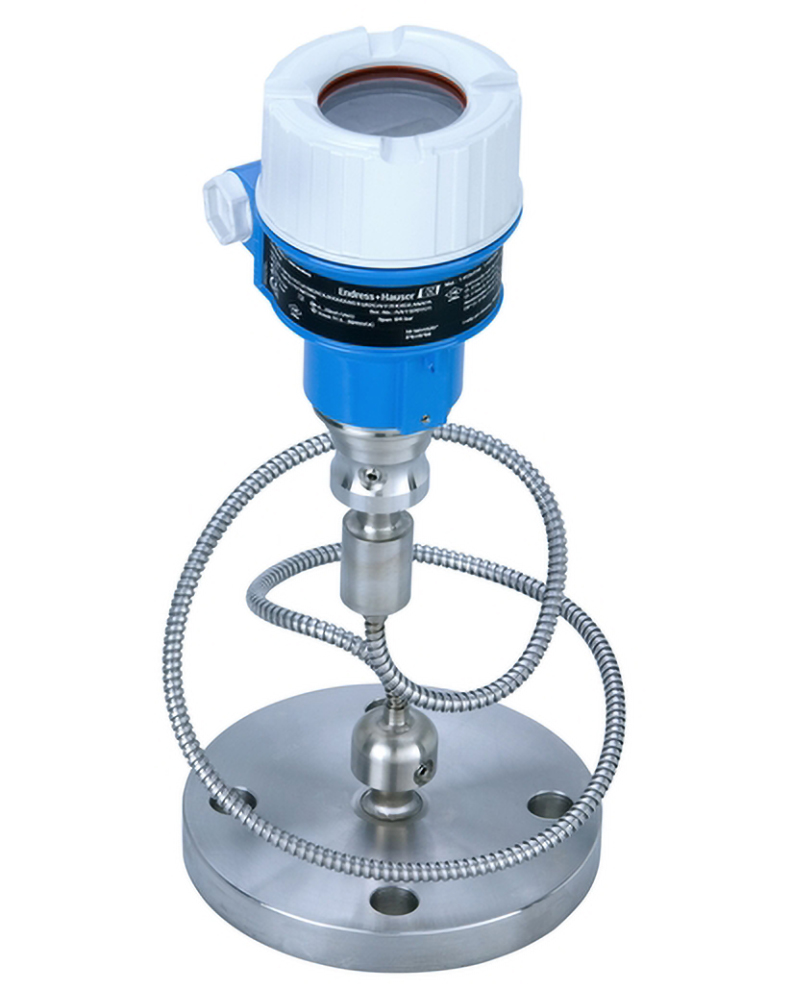

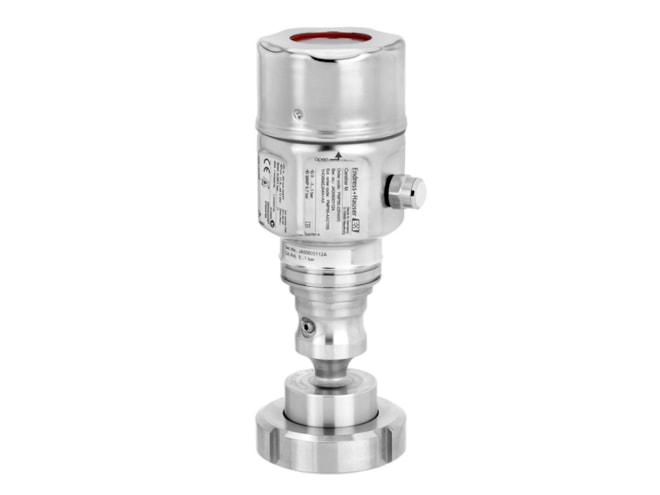

E+H Cerabar PMP55 Pressure Transmitter

Digital pressure transmitter with metal diaphragm seal, typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids.

Starting at $2,070.68

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Features

  • Single chamber aluminum or stainless steel (316L) housing.
  • Threads, flanges or hygienic connections process connections
  • -94 to 752°F (-70 to 400°C) process temperature
  • -1/0 up to +400bar (-15/0 up to +6,000psi) measuring ranges
  • ±0.15%, accuracy "Platinum" ±0.075%
  • 13,123ft (4000m) H2O max measurement distance
  • 4 to 20mA HART: 11,5 to 45V DC; Ex ia: 11,5 to 30V DC
  • PROFIBUS PA, FOUNDATION Fieldbus
  • ATEX, FM, CSA, CSA C/US, IEC Ex, INMETRO, NEPSI, SIL
  • 3A, EHEDG, CoC ASME-BPE
  • GL/ ABS/ LR/ BV/ DNV

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to 400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Additional Part Numbers

These part numbers are available as old stock, but we have limited information about the configuration. Please call for more information.

Part Number Price Available
PMP55-FD21JD1KGFSDJA1AAA Call for information 2 Call to order
PMP55-FD21JD1PGFTJJA4AF1JAKBLW Call for information 1 Call to order
PMP55-AA21SD1PGFTQJA4A Call for information 2 Call to order
PMP55-AA22QD1MGJSDJA4ALB Call for information 1 Call to order
PMP55-AA21SD1KGETDJA4AF1HKJAKB Call for information 3 Call to order
PMP55-AA21RI1FGJUPJA4ALB Call for information 2 Call to order
PMP55-FB21JD1HGETIJA4AAAF1 Call for information 37 Call to order
PMP55-AA21SD1KGFTDJA4AF1JALB Call for information 2 Call to order
PMP55-AA22QA1HGJTJJA4A Call for information 1 Call to order
PMP55-AA21SD2SGFTJJA4ALB Call for information 5 Call to order
PMP55-FA21SD1PGFSDJA4A Call for information 1 Call to order
PMP55-AA21JD1HGASCJA2A Call for information 1 Call to order
PMP55-AA21SI1PGFSDJA4ELBSA 6.00ft Call for information 5 Call to order
PMP55-CD22QD1SGFSDJA1BAALB Call for information 14 Call to order
PMP55-AA21SD1FGFTDJA4AF1JA Call for information 1 Call to order
PMP55-AA21JD1PGFTJJA1A Call for information 4 Call to order
PMP55-AA72QI1FGEMSJA4AF1 Call for information 1 Call to order
PMP55-AA21JD1PDJTDJA4AF1HAHKJAJGKB Call for information 8 Call to order
PMP55-AA21JD1SGFUGJA1B Call for information 7 Call to order
PMP55-AA11SI1PGFTDJA4A Call for information 2 Call to order
PMP55-AA21JD2MGJTJJE1A Call for information 1 Call to order
PMP55-FA22QA2PGJTDJA4A Call for information 3 Call to order
PMP55-AA21SI1FGETDJA4A Call for information 1 Call to order
PMP55-AA12IA1MGJTJJA1A Call for information 3 Call to order

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 weeks". Click here to select options
