Name: Fuji Electric Remote Diaphragm Seals
Price: 486.37 USD
Availability: BackOrder

Fuji Electric Remote Diaphragm Seals — Fuji Electric Remote Seal Diaphragms

Starting at $486.37

View Company Reviews

Manufactured

By Fuji Electric

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Availability

Usually ships in 4-6 weeks

Product Specs

Features

Capillary or rigid assembly
1.5, 3 or 6m capillary lengths
Inside diameter
- 1mm standard
- 2mm for vacuum service, high process temperature applications
100mm smallest bending radius of the capillary
Process temperature
- -40 to 302°F (-40 to 150°C) for rigid mounting
- 14 to 176°F (-10 to 80°C) for capillary mounting with PVC sleeve
- -40 to 662°F (-40 to 350°C) for capillary mounting with stainless steel sleeve

This product is an accessory for the following products:

Fuji Electric V6 Series FKB Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 7,252 psi, SIL 2/3 safety features, <40 ms response time, for use with diaphragm seal, and communicates using HART communications protocol.

Starting at $2,014.76

Fuji Electric V6 Series FKD Differential Pressure Transmitter for Remote Seal

Measures differential pressure up to 2,900 psi, for use with diaphragm seal, communicates using HART communications protocol.

Starting at $2,194.09

Fuji Electric V6 Series FKH Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 435 psia, for use with diaphragm seal, communicates using HART communications protocol.

Starting at $1,417.89

Fuji Electric V6 Series FKM Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 1,450 psi, for use with diaphragm seal, communicates using HART communications protocol.

Starting at $2,701.32

Fuji Electric V6 Series FKP Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 1,450 psi, for use with diaphragm seal, and communicates using the HART communications protocol.

Starting at $1,300.07

Fuji Electric FKB Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 7,252 psi, for use with diaphragm seal, and communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric FKD Differential Pressure Transmitter for Remote Seal

Measures differential pressure up to 2,900 psi, for use with diaphragm seal, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric FKH Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 435 psia, for use with diaphragm seal, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric FKM Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 1,450 psi, for use with diaphragm seal, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric FKP Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 1,450 psi, for use with diaphragm seal, and communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric VG Series FKB Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 7,252 psi, SIL 2/3 safety features, <80 ms response time, for use with diaphragm seal, and communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric VG Series FKD Differential Pressure Transmitter for Remote Seal

Measures differential pressure up to 2,900 psi, for use with diaphragm seal, SIL 2/3 safety features, <80 ms response time, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric VG Series FKH Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 435 psia, for use with diaphragm seal, SIL 2/3 safety features, <80 ms response time, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric VG Series FKM Absolute Pressure Transmitter for Remote Seal

Measures absolute pressure up to 1,450 psi, for use with diaphragm seal, SIL 2/3 safety features, <80 ms response time, communicates using HART or Fuji communications protocols.

RETIRED

Fuji Electric VG Series FKP Gauge Pressure Transmitter for Remote Seal

Measures gauge pressure up to 1,450 psi, SIL 2/3 safety features, <80 ms response time, for use with diaphragm seal, and communicates using HART or Fuji communications protocols.

RETIRED

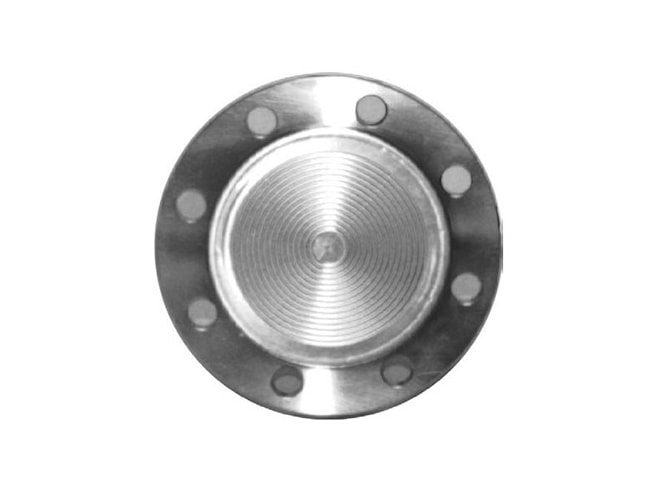

Fuji Electric remote diaphragm seals prevent the measuring cell of a pressure transmitter from coming directly in contact with the process conditions. The various diaphragm architectures and welded seal construction offer excellent reliability in harsh processing conditions such as high static pressure, temperature or corrosiveness, and viscous, crystallizable or abrasive processes. The pressure is applied to the remote seal and transferred by the filling fluid through the capillary path to the measuring cell of the pressure transmitter.

The remote seal can be assembled to the transmitter either by a direct (rigid) connection (for level measurement at the bottom of a tank), or by capillary (for use with a distant measuring point and high process temperature). The fully welded design allows a gasket-free path between the remote seal and the measuring cell of the pressure transmitter. Depending on the application, various fill fluids are available to ensure the optimal transmission of the process pressure to the measuring cell. The rigid assembly can either be a "long design" (in line) or a "short design," as shown in the outline dimension drawings on the datasheet.

Various diaphragm seal types are available depending on the mounting and operating conditions. Types include flush mounting design from DN40 to DN100; seals with extensions from 50 to 200 mm; flanged, screwed or welded neck adapters; and seals for sanitary applications for DIN, SMS or Tri-Clamp standards.

The working pressure is limited by the smallest value between the nominal flange rating of the seal diaphragm and the maximum working pressure of the transmitter. The vacuum limit depends on the limit of the measuring cell and the filling fluid of the remote seal. For the differential or gauge pressure transmitter, the vacuum limit is 20 Torr or 27 mbar abs.
