Starting at $377.00
  • Usually ships in 2-3 weeks

Features

  • 0.5 to 30 ft/sec recommended design flow range
  • Accuracy
    • ±1.0% of FS over recommended design flow range
  • Temperature ratings
    • Standard: 221°F (105°C) continuous service
    • Irrigation electronics: 150°F (66°C)
    • High temp: 285°F (141°C) continuous service
    • High temp: 305°F (150°C) peak (limited duration)
  • Pressure ratings for bronze
    • 200 psi from -20 to 150°F
    • 190 psi at 200°F
    • 180 psi at 250°F
  • Pressure ratings for cast iron
    • 175 psi from -20 to 150°F
    • 165 psi at 200°F
    • 150 psi at 250°F
    • 140 psi at 300°F
  • Pressure ratings for stainless steel
    • 300 psi from -20 to 150°F
    • 265 psi at 200°F
    • 225 psi at 250°F
    • 165 psi at 300°F
  • Temperature and pressure ratings for PVC
    • Dependent on hardware configurations

The Badger Meter Series 228 flow sensors feature a six-bladed impeller design with a proprietary non-magnetic sensing mechanism. The forward-swept impeller shape provides higher, more consistent torque than four-bladed impeller designs and is less prone to be fouled by waterborne debris. The forward-curved shape, coupled with the absence of magnetic drag, provides improved operation and repeatability, even at lower flow rates. This is especially true where the impeller is exposed to metallic or rust particles found in steel or iron pipes. As the liquid flow turns the impeller, a low impedance square wave signal is transmitted with a frequency proportional to the flow rate. The signal can travel up to 2000 feet between the flow sensor and the display unit without the need for amplification.

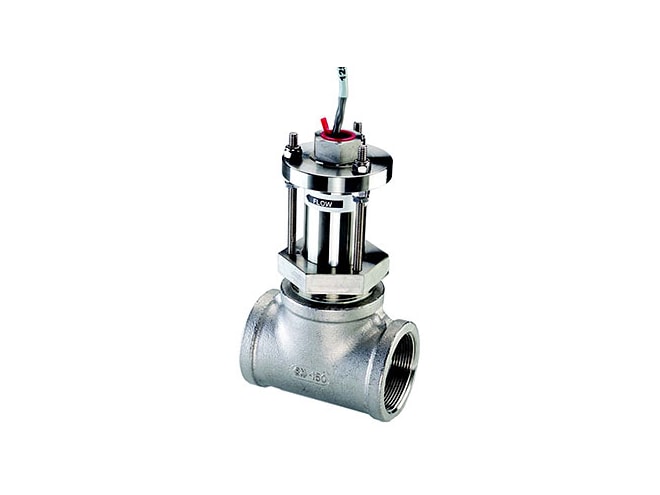

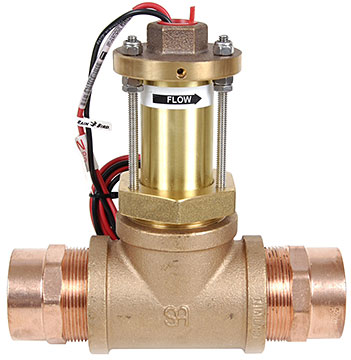

The Series 228 features four models. The 228BR consists of a brass sleeve and hex mounting adapter assembly inserted in a 2- or 2-1/2-inch bronze tee. The 2-inch size includes copper solder adapters for mating to copper tubing. The 228CB features a brass sleeve and hex mounting adapter assembly inserted in a 2- or 2-1/2 inch Class 150 cast iron tee. The 228SS consists of a stainless steel sleeve and hex mounting adapter assembly inserted in a 2-inch 316 stainless steel tee. The 228PVC features a modified PVC tee with solvent weld socket end connections, and a removable PPS or PVDF sensor insert. All models are preset to a specific height.
