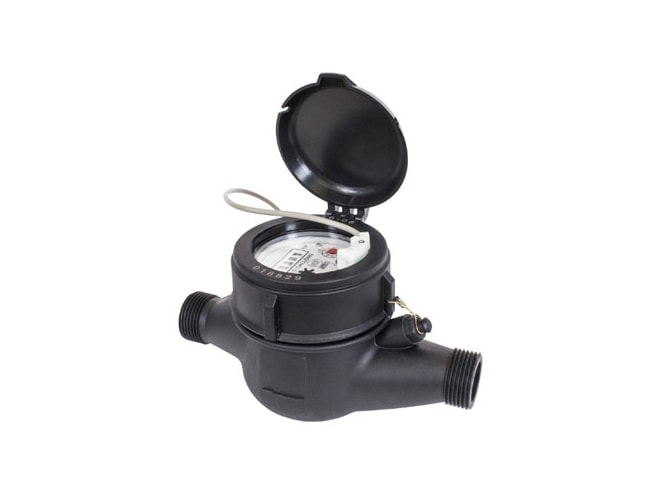

Seametrics MJP Series Pulse Water Meter

Dry top multi-jet design, tolerates low quality water, sensors types: hall-effect device, reed switch, totalizer.

Retired products cannot be ordered

The Seametrics MJN Series Pulse Water Meter is the recommended replacement

View Company Reviews

Manufactured

By Seametrics

Includes

FREE Ground Shipping on orders of $1,000 or more
FREE Lifetime Tech Support

Product Manual Product Specs

Features

Certified to NSF/ANSI 61
Dry top multi-jet design
Size / flow ranges:
- 3/4 inch: 0.25 to 20 GPM
- 1 inch: 0.75 to 50 GPM
- 1 1/2 inch: 1.5 to 100 GPM
±1.5% of reading accuracy
105°F (40°C) max temperature
Sensor types:
- Hall-effect device
- Reed switch
- Totalizer only
Tolerates low quality water
Pressure: 150 psi operating

The Seametrics MJP Series Pulse Water Meters use the multi-jet principle, which has been an internationally-accepted standard for many years. This type of meter is known for its wide range, simplicity, and accuracy in low quality water. The Seametrics MJP Series is certified to NSF/ANSI 61. The impeller is centered in a ring of jets, with inlet jets on one level and outlet jets on another. A gear train drives the register totalizer dials. For pulse output, one of the pointers is replaced by a magnet, which is detected by an encapsulated sensor attached to the outside of the lens. Pulse rate is determined by the dial on which the magnet is placed, and by the number of sensors (single or double).

The MJP Series has a plastic body and is available in 3/4", 1", and 1 1/2" versions. The MJPE meters use a solid-state, long-lasting Hall-effect sensor, which requires power. It is suited for use with Seametrics controls and metering pumps that have sensor power. The MJPR meters use a two-wire reed switch. They provide a dry contact closure and do not require power. The MJPT meters totalize only and do not have a sensor.
