Features

  • Continuous analog level measurement
  • Floats are field removable
  • 1/4in or 1/2in resolution
  • Aluminum, stainless, or polypropylene enclosures
  • 316/316L stainless steel fitting material
  • 316L stainless steel probe
    • 0.5in diameter & 0.062in wall thickness
  • Undisturbed by foaming
  • Vapor insensitive
  • Liquid interface detection

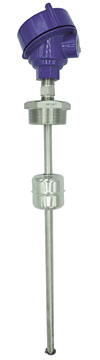

The Intempco LFT01 float level transmitter is a simple, reliable, and cost effective means of continuous sensing of liquid levels. This device uses a magnetic float, which is free to move vertically along a stem equipped with reed magnetic switches. The switches are fully contained within the stem.

It is ideal for level measurement where installation space is limited or tanks are compact, but not recommended where liquids are dirty or sticky. Some example applications are:

  • Water based liquids
  • Acids compatible with Stainless 316
  • Hydraulic and other clean oil applications
  • Chemical holding tanks with clean liquids
  • Measurement of liquid levels in mobile equipment
  • Machinery, Energy, Naval, Industrial, Automation
