Starting at $1,295.00

Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call a Calibration Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • 3.0 VDC at 87.5Ω load cell excitation
    • 4.6 VDC at 700Ω
  • 34mA load cell current
  • 0.6 to 4.0mV/V analog signal input range
  • 0.2μV/graduation minimum analog signal sensitivity
    • 1.5μV/graduation recommended
  • 60 updates per second conversion rate
  • 14 to 104°F (-10 to 40°C) operating temp (T4 rating)
  • Stainless steel IP66 enclosure
  • cFMus, ATEX, and IECEx approvals
  • 1-year limited warranty

This product is an accessory for the following products:

Rice Lake ITCM Weigh Modules
Features clevis and rod-end ball-joint assembly to provide excellent performance in suspended tank and hopper weighing applications
$500.00
Rice Lake RL9000TWM Load Cells
One-piece module ideal for hostile-environment vessel weighing with low profile and weatherproof stainless steel construction
$650.00

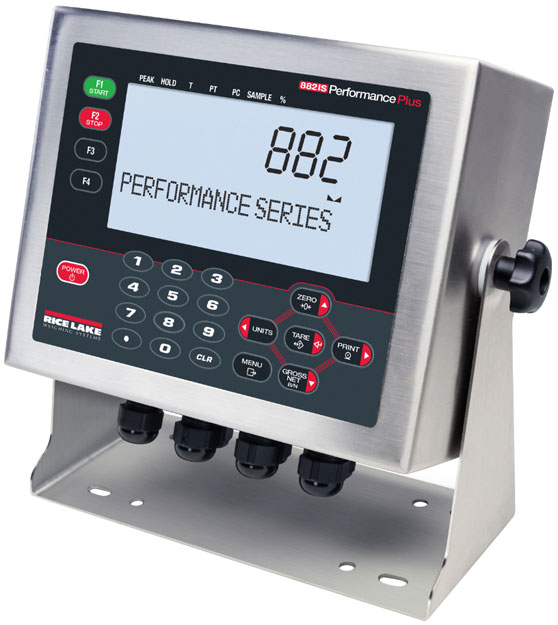

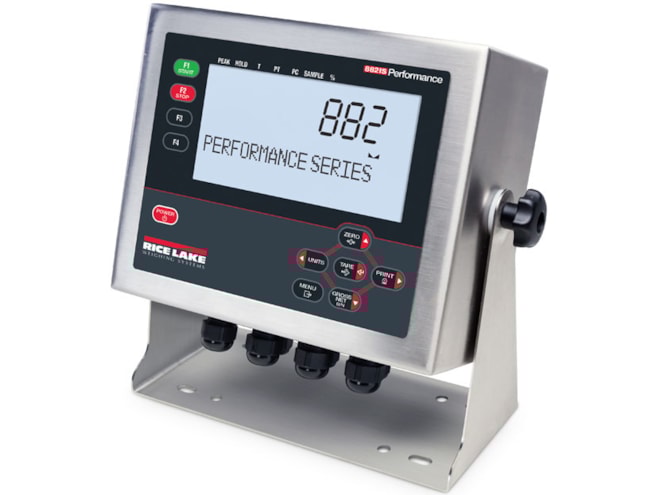

The Rice Lake 882IS weight indicator is designed for hazardous locations that are potentially explosive, built to safely operate in these settings without sacrificing performance.

Rice Lake 882IS Weight Indicator Applications

  • Fuel refineries
  • Chemical plants
  • Distilleries
  • Textile manufacturing

Instrument Options

Rice Lake 882IS Ethernet/IP Option
Ethernet Industrial Protocol communication based on the IEEE 802.3 standard, the TCP/IP protocol suite and CIP
$575.00
Rice Lake 882IS ProfiNet Option
Supports 10/100 Mbps, full or half duplex operation, update rate depends on the configured baud rate and the number of network nodes
$575.00
Rice Lake 882IS Profibus Option
Interface module used to read and write data to the 882IS using a PLC or another primary controller
$575.00
Rice Lake 882IS Modbus TCP Option
Supports 10/100 Mbps, full or half duplex operation, uses holding registers to transfer data between 882IS and a PLC or primary device
$575.00
Rice Lake 882IS EtherCAT Option
Supports 10/100 Mbps, full or half duplex operation, port 1 is for incoming communications and port 2 is for outgoing communications
$575.00
Rice Lake 882IS DeviceNet Option
Communications adapter device connects to a DeviceNet network, acts as a group-two-only server, supports one polled I/O
$575.00
Rice Lake 882IS Single Analog Output
0 to 10VDC, 0 to 20mA, or 4 to 20mA
$360.00

Accessories

Please consider these optional accessories.

Rice Lake IS6V2 Rechargeable Battery
FM approved battery supply for use in hazardous locations, 250mA max current, 6VDC output
$595.00
Rice Lake IS6V2 Battery Charger
Universal 90 to 264 VAC input with output of 6VDC nominal, 7.2VDC charge, 6.8VDC float
$225.00
Rice Lake 882IS Power Cable
Hazardous location cable with M12 D-code straight male to right angle female connectors
$65.00
Rice Lake 882IS Dual Output Power Supply
100 to 240VAC input line voltage feed must be run through conduit and be properly sealed, output 6.8VDC, 200mA
$895.00
