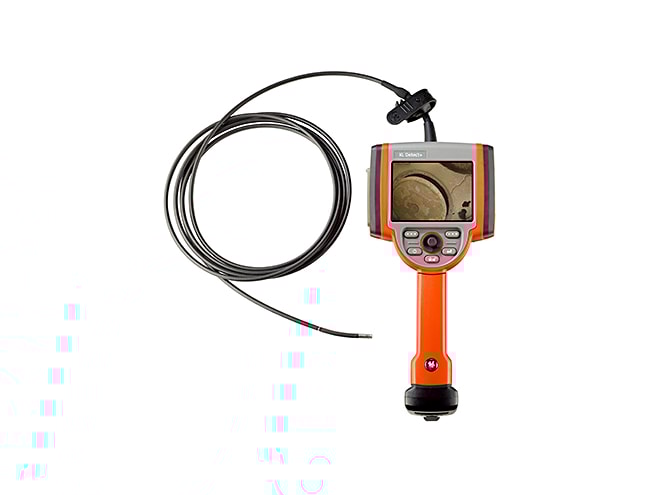

Waygate Technologies XL Detect and XL Detect+ VideoProbe

Utility video borescope with all-way probe articulation for image and video capture.

Waygate Technologies XL Detect and XL Detect+ VideoProbe — Waygate Technologies XL Detect+ VideoProbe

Waygate Technologies XL Detect+ VideoProbe
Waygate Technologies XL Detect VideoProbe

Starting at $16,856.00

View Company Reviews

Manufactured

By Waygate Technologies

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Usually ships in 3-4 weeks

Product Manual Product Specs

Features

Titanium housed, color SUPER HAD CCD camera
- 4mm has 290,000 pixels
- 6.1 or 8.4mm have 440,000 pixels
-13 to 212°F (-25 to 100°C) tip operating temp
Integrated, active matrix VGA color LCD monitor
- XL Detect: Transflective 3.7in (9.4cm)
- XL Detect+: Transmissive 5.0in (12.7cm)
Internal flash memory
- XL Detect: 4GB
- XL Detect+: 16GB
IP rating
- XL Detect: IP55
- XL Detect+: IP65

What's in the Box

XL Detect or XL Detect+
Documentation thumb drive
Quickstart card
2-hour lithium-ion battery
AC adapter/Battery charger
Storage case
Optical tip storage case

The Waygate Technologies XL Detect+ and XL Detect videoprobes are lightweight and portable with powerful light output to produce clear, sharp videos and still images. The videoprobes have big, bright LCD screens (5-inch and 3.7-inch options, respectively) resulting in greater image clarity and improved probability of detection.

The XL Detect+ and XL Detect are equipped with Menu Directed Inspection (MDI) 2.0, an intuitive application to guide users through the inspection process to automatically tag images and organize results for simplified reporting. With 16GB of internal memory, the XL Detect+ has room for storage of up to 15 MDI templates.

The rugged build of XL Detect+ and XL Detect holds up to tough inspection environments, including exacting U.S. military standards for durability, resulting in lower cost of ownership in the long term.

Waygate Technologies is formerly known as GE Inspection Technologies (GEIT).

Spec Sheets

Waygate Technologies XL Detect and XL Detect+ VideoProbe Datasheet PDF (814 KB)

Application Notes and White Papers

Waygate Technologies Pharmaceutical Application (249 KB)

Manuals

Waygate Technologies XL Detect and XL Detect+ VideoProbe Manual PDF (6.4 MB)

Other

VideoProbe Accessories Guide PDF (7.7 MB)
