Fluke TiX501 60 HZ Infrared Camera with rotating lens

307,200 pixels (640 x 480), -4 to 1202°F (-20 to 650°C), ≤0.075°C sensitivity at 30°C, 240° rotatable lens.

Fluke TiX501 60 HZ Infrared Camera

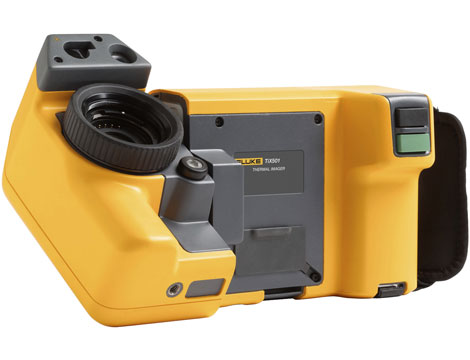

Fluke TiX501 60 HZ Infrared Camera with rotating lens

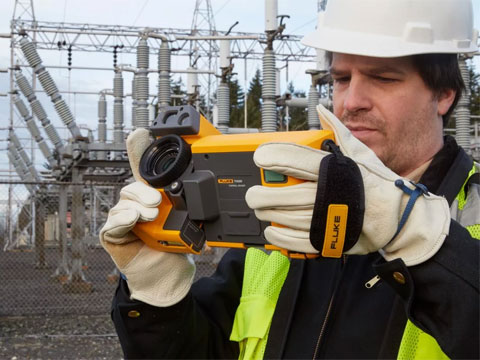

Fluke TiX501 60 HZ Infrared Camera application transformers

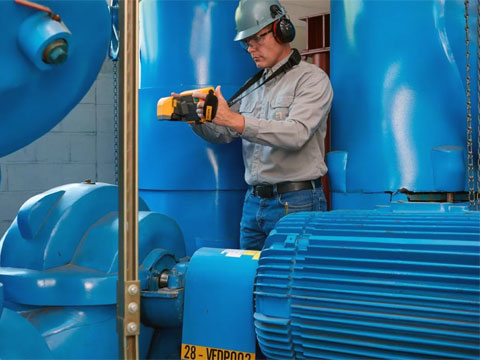

Fluke TiX501 60 HZ Infrared Camera application

Retired products cannot be ordered

The Fluke TiS75+ Thermal Camera is the suggested replacement

View Company Reviews

Part Number

FLK-TiX501 60 HZ

Manufactured

By Fluke
Made in the USA

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Manual Product Specs

Features

2x digital zoom
Image capture, review, and save
Video recording
5.7in (14.4cm) LCD screen
4GB internal flash memory
≥4GB memory card
3.3ft (1m) drop with standard lens
IP54 enclosure rating
2-year Warranty

Looking for a fever screening solution? Here's a list of approved items.

What's in the Box

Infrared camera
Standard infrared lens
AC power supply and battery pack charger
Two lithium-ion smart battery packs
USB cable
HDMI video cable
4GB micro SD card
Adjustable hand strap
Adjustable neck strap
Hard, air-tight, carrying case

The Fluke TiX501 60 HZ Infrared Camera offers 640 x 480 resolution image quality. The articulating design offers flexibility to access awkward locations without undue physical strain on the thermographer. LaserSharp™ Auto Focus uses a built-in laser distance meter that calculates and displays the distance from your designated target and immediately adjusts the focus. Fluke uses 100% diamond-turned germanium lenses with specialty coatings that produce high-quality infrared images. The Standard Infrared Lens has a field of view (H x V) 34° x 24° and a minimum focus distance of 6in (15cm). Telephoto and wide-angle interchangeable Smart Lenses are available as accessories, and require no calibration.

See more details when you adjust the level of infrared and visible light with patented IR-Fusion™ technology. Edit and analyze images on camera. Edit emissivity, enable color alarms and markers, and adjust IR-Fusion™ visual and infrared image blending.

Manage data, capture multiple measurements (mechanical, electrical and thermal) and organize them by piece of equipment with Fluke Connect™ software. Stream thermal data and operate the camera remotely with Fluke Connect Desktop software available through free download.
