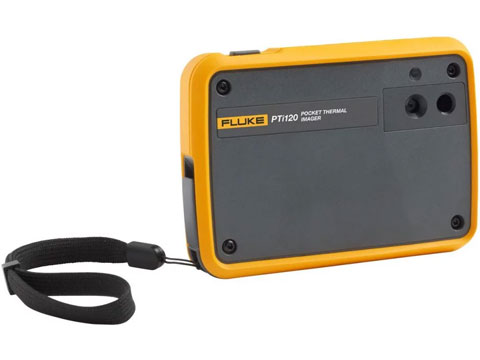

Fluke PTi120 9HZ Pocket-Sized Thermal Imager
10,800 (120 x 90) pixel resolution, -68 to 302°F, 60mK sensitivity, touchscreen display.
$1,089.99
Found a better price? Let us match.
Part Number
- FLK-PTi120 9HZ
Manufactured
- By Fluke
Includes
Availability
Overview
Features
- 120 x 90 resolution
- -68 to 302°F (-20 to 150°C)
- 3.5 x 5 x 1in, 0.514 lb
- 3.5” LCD touchscreen
- ≥2 GB internal flash memory
- IP 54 enclosure rating
- 2-year warranty
Looking for a fever screening solution?
Here's a list of approved items.

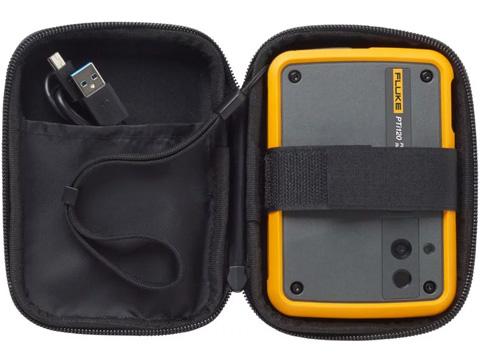

What's in the Box
- Thermal imager
- Soft case
- Lanyard
- USB cable
- One Lithium-ion battery, installed
Description

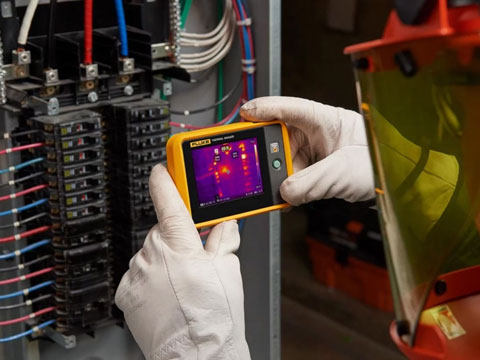

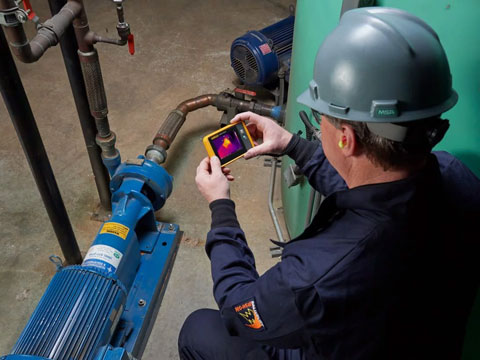

Fluke PTI120 9HZ Pocket-Sized Thermal Imager is a rugged, portable, infrared camera for quick temperature scans of electrical equipment, machinery and other assets. It's small enough to carry every day, stands up to dirt and water, and can survive a 3ft (1m) drop. The 3.5" LCD touchscreen offers IR-fusion™ to blend a visible light image with an infrared image to more easily locate problems. Simply slide your finger across the screen to adjust the setting.
With Fluke connect asset tagging you eliminate the time sorting and organizing your infrared images. Fluke Connect software and user manual are available as a free download. By simply scanning your asset's QR code or bar code, your infrared image and all of your date-and-time-stamped information will be stored to your predefined folders. Send via Wifi or automatically upload once you connect to the network or computer via USB.
Documents
Spec Sheets
Manuals
