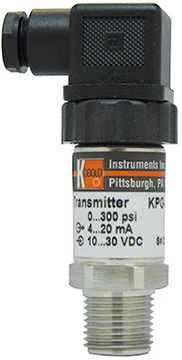

Kobold KPG High Pressure Transmitter

Gauge, absolute & compound pressure ranges from -30 inHg up to 145,000 PSIG with ±0.25% full scale standard accuracy.

Starting at $737.58

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs

Features

  • Gauge, absolute & compound pressure ranges
    • 0 to 2 PSIG up to 0 to 145,000 PSIG
    • 0 to 15 PSIA up to 0 to 300 PSIA
    • -30 inHg to 0 PSIG up to -30 inHg to 300 PSIG
  • ±0.25% of full scale accuracy standard
    • Improved ±0.125% of full scale accuracy (optional)
  • High over-pressure protection
  • Current & voltage output options
  • CE compliant to suppress RFI, EMI, & ESD
  • Stainless steel construction
  • NEMA 4X, IP65 (IEC529)

The Kobold KPG high pressure transmitter uses diffused semi-conductor and sputtered thin film sensor technology to offer gauge, absolute and compound pressure ranges with ±0.25% standard accuracy. Gauge pressure can be measured from 0 to 2 psig up to 0 to 145,000 psig, while absolute pressure ranges are available up to 300 psia and compound ranges from -30 inHg to 0 psig up to -30 inHg up to 300 psig. These Kobold pressure transmitters are CE compliant to suppress RFI, EMI and ESD and offer high over-pressure protection.

With stainless steel construction, the Kobold KPG high pressure transmitter is designed for heavy duty applications including hydraulic and pneumatic systems, industrial machinery and tools, injection molding machines and more. Both current and voltage output options are available with the KPG transmitter, as well as an optional improved full scale accuracy of ±0.125% for high accuracy applications.
