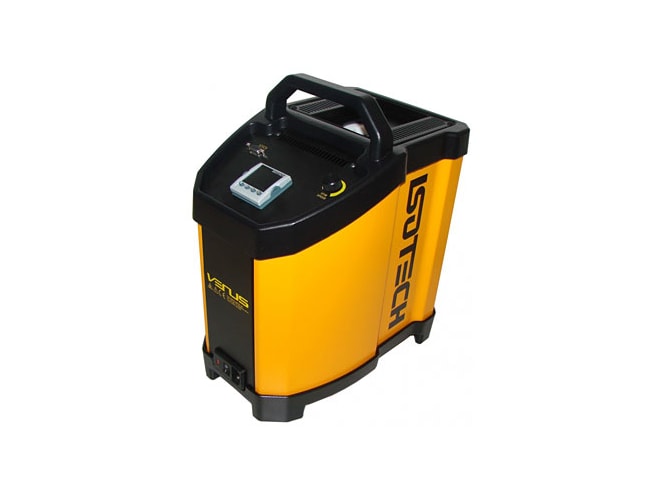

Isotech Venus 4951 Temperature Calibrator

Isocal-6 portable dry block calibrator for temperatures from -35 to 140°C, can be converted to a liquid bath calibrator.

Isotech Venus 4951 Temperature Calibrator — Isotech Venus 4951 Basic Temperature Calibrator

Isotech Venus 4951 Basic Temperature Calibrator
Isotech Venus 4951 Site Temperature Calibrator
Isotech Venus 4951 Advanced Temperature Calibrator

Starting at $10,338.79

View Company Reviews

Manufactured

By Isotech

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Availability

Call for availability

Product Manual Product Specs

Features

35 x 160mm calibration volume
±0.03°C stability (Basic & Site models)
- ±0.01°C stability (Advanced model)
Common uniformity specifications
- <0.02°C Radial, Liquid Bath mode
- <0.026°C Axial, Liquid Bath mode (40mm)
- <0.008°C Radial, Dry Block mode (between wells)
- <0.040°C Axial, Dry Block mode (40mm)
15min heating time from -30 to 140°C
- 15min to cool from 140 to 0°C

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

What's in the Box

Standard insert
3 point traceable certificate

The Isotech Venus 4951 temperature calibrator can be used as a dry block or liquid bath. Accessories are available for converting to a stirred liquid bath, surface sensor calibration, to calibrate infrared thermometers and even to use as an ITS-90 Fixed Point System with calibration uncertainties as small as 0.0005°C. With excellent stability and distributed heating / cooling zones for good uniformity these calibrators offer proven thermal performance, are easy to use, and available in three models.

Basic Model

Digital display of set and nominal block temperature
Use with a separate external indicator to compensate for gradients and loading
Calibrator does not need calibrating; only the indicator & sensor need re-calibration
Cal Notepad software
Serial PC interface

Site Model

Digital display of set and nominal block temperature
Single channel indicator for reference probe
Best Practice calibration with established traceability and uncertainty
Re-calibration requires sending whole unit in
Cal Notepad software
Serial PC interface

Advanced Model

Digital display of set and nominal block temperature
Three channel indicator for reference probe and units under test
Advanced features including automatic temperature cycling and logging
Best Practice calibration with established traceability and uncertainty
Re-calibration requires sending whole unit in
I-Cal Easy LOG software & built-in web server
Ethernet & USB host PC interface

Spec Sheets

Isotech Venus Temperature Calibrator Datasheet PDF (2.1 MB)

Manuals

Isotech Venus Advanced Temperature Calibrator Manual PDF (1.1 MB)

Links

All possible part numbers

Probes

Isotech Standard Reference Probe

Isotech Standard Reference Probe

Standard Reference Probe -50 to +250°C (482°F).

Calibration

Isotech 951-06-02 Surface Sensor Calibrator Kit

Isotech 951-06-02 Surface Sensor Calibrator Kit

Surface sensor calibration insert and RTD for Calisto, Venus, and Europa.

Software

Isotech I-Cal Easy Calibration Software

Isotech I-Cal Easy Calibration Software

Powerful software automates the calibration process and provides certificates.

Cases

Isotech 931-22-111 Carrying Case

Isotech 931-22-111 Carrying Case

Sturdy carrying case for ISOCAL Europa, Venus, Calisto, Jupiter, & Pegasus .

Accessories

Please consider these optional accessories.

Isotech Standard Insert

Isotech Standard Insert

Standard insert with 2 x 4.5mm, 2 x 6.4mm, 1 x 8mm, 1 x 9.5mm pockets.

Isotech Stirred Liquid Container Kit

Isotech Stirred Liquid Container Kit

Stirred liquid container kit for ISOCAL 6 (Alcohols, Water, or Oils).

Isotech Blackbody Target

Isotech Blackbody Target

Blackbody target for ISOCAL 6.

Isotech Mercury Melt Point Cell and Insulation Assembly

Isotech Mercury Melt Point Cell and Insulation Assembly

ITS-90 Fixed Point, Mercury Triple Point Cell for ISOCAL 6.

Isotech Water Triple Point Cell

Isotech Water Triple Point Cell

ITS-90 fixed point, water triple point cell for ISOCAL 6, includes container and three caps.

Isotech Gallium Melt Point Cell

Isotech Gallium Melt Point Cell

ITS-90 Fixed Point, Gallium Melt Point Cell for ISOCAL 6.

Isotech Surface Sensor Insert

Isotech Surface Sensor Insert

Replacement surface sensor insert for ISOCAL 6.

Isotech Blank Insert

Isotech Blank Insert

Blank metal insert for ISOCAL 6.

Isotech Insert Extraction Tool

Isotech Insert Extraction Tool

Insert Extraction Tool for ISOCAL 6.

Isotech Replacement Liquid Container Magnetic Followers

Isotech Replacement Liquid Container Magnetic Followers

Replacement liquid container magnetic followers (Qty. 5).

Isotech C10 Silicone Oil

Isotech C10 Silicone Oil

1 liter of C10 silicone oil for Isotech Hyperion (-35 to +140°C).
