Michell Instruments Optidew Chilled Mirror Hygrometer

New chilled mirror hybrid sensor gives fast dynamic response to changes in humidity.

Starting at $6,257.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 13-14 weeks
Product Manual Product Specs

Features

  • Chilled mirror hybrid sensor
  • Model type:
    • OPT401: Bench Top
    • OPT501: Wall Mount
  • Accuracy:
    • ±0.15°C dew point
    • ±0.1°C temperature
  • Measurement range: -40 to 248°F (-40 to 120°C)
  • Touch-screen HMI
  • Sensor types:
    • Polyoxymethylene (acetal, standard conditions)
    • PEEK (poly ether ether ketone, harsh environments)
  • Repeatability: ±0.05°C
  • Sensitivity: ±0.01°C
  • M36x1.5 process connection

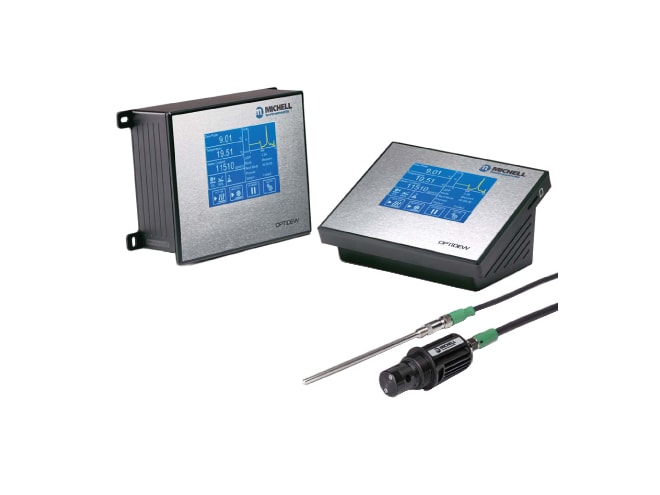

The Michell Instruments Optidew Chilled Mirror Hygrometer is available in bench top and wall mount configurations, and features an intuitive touch screen interface for easy local operation. Using the latest developments in chilled mirror technology, it has a response speed comparable to polymer relative humidity sensors, combined with the reliability of drift-free measurements common to all chilled mirror instruments.

Applications for the Optidew include:

  • Reference humidity instrument for climatic and environmental chambers
  • Inlet air measurement for engine testing
  • HVAC testing
  • Environmental monitoring in clean rooms
  • Coating process monitoring – for confectionary and pharmaceuticals
  • Control of humidity for metallurgical processes

Cases

Michell Instruments OPT401 Transport Case
Michell Instruments OPT401 Transport Case

OPT401 transport case.

$1,087.00

Accessories

Please consider these optional accessories.

Michell Instruments OPT2-SSB Sensor Sampling Block
Michell Instruments OPT2-SSB Sensor Sampling Block

Sensor sampling block, SS with 1/8in NPT in/out threaded gas ports.

$494.00
Michell Instruments OPT2-ACHS Extended Heatsink
Michell Instruments OPT2-ACHS Extended Heatsink

Extended Heatsink for the Optidew Chilled Mirror Hygrometer.

$1,087.00
Michell Instruments Porous Aluminum Guard
Michell Instruments Porous Aluminum Guard

Porous aluminium guard.

$412.00
Michell Instruments OPT2-SM Sensor Mounting Bracket
Michell Instruments OPT2-SM Sensor Mounting Bracket

Sensor mounting bracket.

$165.00
Michell Instruments 6 & 8 Way Plugs
Michell Instruments 6 & 8 Way Plugs

Optidew 6 & 8 Way Plugs for Outputs/Alarms .

$74.00
Michell Instruments OPT2 POM Sensors
Michell Instruments OPT2 POM Sensors

1 stage or 2 stage POM dew point sensors.

Starting at $4,079.00
Michell Instruments OPT2-HES-2 Dew Point Sensor
Michell Instruments OPT2-HES-2 Dew Point Sensor

Dew Point Sensor, 2 stage (PEEK).

$6,850.00
Michell Instruments OPT2 Pressure Sensor
Michell Instruments OPT2 Pressure Sensor

Pressure Sensor with ranges of 0 to 16 kPa and 0 to 250 kPa.

Starting at $603.00
Michell Instruments OPT2-PRT Temperature Sensor
Michell Instruments OPT2-PRT Temperature Sensor

Ambient Temperature Sensor.

$180.00
Michell Instruments ASC Cables
Michell Instruments ASC Cables

Ambient temperature sensor or pressure sensor cables, 0.3m, 3m, 5m, 10m and 20m length available.

Starting at $113.00
Michell Instruments OPT2-HTSC High Temp Cables
Michell Instruments OPT2-HTSC High Temp Cables

High temperature cable (Dew Point Sensor), Max 120°C, 3m, 5m, 10m and 20m lengths available.

Starting at $317.00
Michell Instruments OPT2-HTASC Cables
Michell Instruments OPT2-HTASC Cables

High temperature cable (Temp Sensor or pressure sensor), Max 120°C, 3m, 5m, 10m, 20m .

Starting at $317.00
