Michell Instruments Easidew Online Dew Point Hygrometer

Panel or bench mount hygrometer with digital display, analog & digital outputs measuring from -166 to +68°Fdp (-110 to +20°Cdp). Learn more...

Starting at $2,285.00

View Company Reviews
Manufactured
Includes
Availability
Product Manual Product Specs

Overview

Features

  • Dew point or ppm moisture content
    • -166 to +68°Fdp (-110 to +20°Cdp) dew point range
    • 0 to 3,000ppm moisture content range
  • ±3.6°F (±2°Cdp) accuracy
  • ±0.9°Fdp (±0.5°Cdp) repeatability
  • 5/8 in. & 3/4 in. UNF process connection options
  • Analog & digital outputs
    • 4-20mA or 0-20mA
    • RS-232
  • Dual user-programmable alarms
  • VAC & VDC power supply options
  • IP66 (NEMA 4) sensor
  • IP65 (NEMA 12) monitor (front panel only)
    • 1/8 DIN case

What's in the Box

  • Traceable calibration certificate

Description

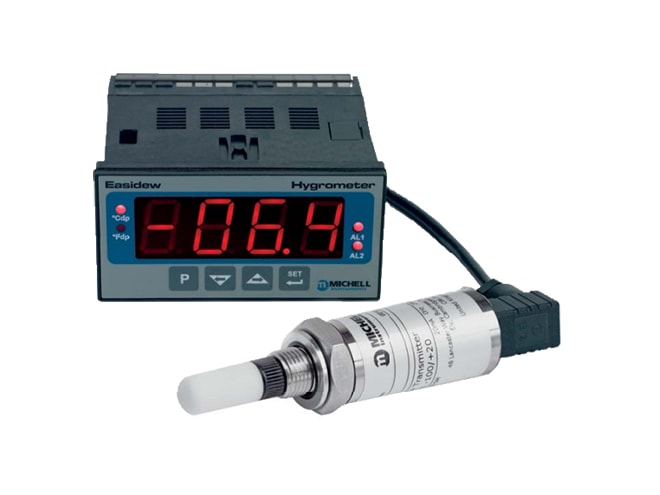

The Michell Instruments Easidew online dew point hygrometer offers a panel or bench mount hygrometer with a large digital display, analog and digital outputs as well as a dual alarm feature that is programmable through the display. Utilizing the Michell Instruments Easidew transmitter, this hygrometer offers a measurement range of -166 to +68°Fdp (-110 to +20°Cdp) or 0 to 3,000ppm moisture content, either with ±3.6°F (±2°Cdp) accuracy.

The display of the Michell Instruments Easidew online dew point hygrometer is housed in a 1/8 DIN case and features an IP65 (NEMA 12) rating on the front panel (only). Both 85 to 264 VAC or 24 VDC power options are available. Analog output options include 4 to 20mA or 0 to 20mA, while RS-232 is the lone digital output option for the Easidew online hygrometer. A 0.8 meter (2.62 foot) cable connecting the transmitter to the display is supplied standard, but longer cable lengths are available including custom lengths up to 800 meters (2624.67 feet).

Documents

Accessories

Michell Instruments Easidew CSB Sampling Block
Michell Instruments Easidew CSB Sampling Block

5/8 inch stainless steel sampling block with 1/8 inch NPT inlet & outlet ports for use with Easidew transmitters.

In Stock
$95.00
Michell Instruments Easidew Cable
Michell Instruments Easidew Cable

Replacement cable for Easidew transmitters, available in a variety of lengths.

Some Models in Stock
Starting at $50.00
Michell Instruments Easidew EA2 Dew Point Transmitter
Michell Instruments Easidew EA2 Dew Point Transmitter

±3.6°F (±2°C) dew point measurement from -110° to 20°Cdp with 5/8 inch process connection.

Some Models in Stock
Starting at $1,790.00
Michell Instruments Easidew Online Monitor
Michell Instruments Easidew Online Monitor

Replacement monitor for the Easidew online dew point hygrometer.

Some Models in Stock
Starting at $455.00
Michell Instruments EA2-HDPE Replacement Guards
Michell Instruments EA2-HDPE Replacement Guards

Pack of 10 HDPE replacement guards to protect Easidew transmitters from fine particulate < 10µm.

$230.00
Michell Instruments SSG Replacement Guard
Michell Instruments SSG Replacement Guard

Stainless steel sintered replacement guard to protect Easidew transmitters from fine particulate < 80µm.

In Stock
$45.00
Michell Instruments Particulate Filter Cartridges
Michell Instruments Particulate Filter Cartridges

Pack of 10 cartridges for protection against fine particulate < 0.1µm for use with Easidew transmitters.

$175.00
Michell Instruments Easidew Adapter
Michell Instruments Easidew Adapter

Designed to connect Easidew transmitters to a variety of process connections.

Some Models in Stock
Starting at $70.00
Michell Instruments Replacement Labels
Michell Instruments Replacement Labels

Two additional or replacement labels for Easidew transmitters.

$15.00
Michell Instruments Bonded Seal
Michell Instruments Bonded Seal

5/8 inch bonded seal for process connection.

$20.00
Michell Instruments Sensor Connector
Michell Instruments Sensor Connector

Sensor connector for Easidew transmitters.

$5.00
Michell Instruments Monitor RS-232 Cable
Michell Instruments Monitor RS-232 Cable

Monitor RS-232 6-foot cable for Easidew online dew point hygrometer.

$55.00
Michell Instruments Stainless Steel Tag
Michell Instruments Stainless Steel Tag

Stainless steel tag for Easidew transmitters, 3-inch by 1-inch, engraved with customer-provided information.

$60.00
Michell Instruments Easidew Monitor Enclosure
Michell Instruments Easidew Monitor Enclosure

Enclosure for use with Easidew online dew point hygrometer.

Starting at $560.00
Michell Instruments Universal Communications Kit
Michell Instruments Universal Communications Kit

Universal communications kit with three cables for Easidew and Pura transmitters.

In Stock
$895.00

In Stock

Part Number Process Connection Range Protection Monitor Power Cable Sampling Block Price Available
EA2-OL-HYG-(-100/20C)-HD-AC-SC02-WB
Show Full Configuration
5/8 inch UNF
-100 to +20°Cdp
Standard HDPE guard (protection against fine particulate <10 μm)
85 to 265 VAC
2m (6.56 ft.) length with mini-DIN mating socket
With sampling block
 $2,385.00 1 in stock
EA2-OL-HYG-(-100/20C)-HD-AC-SC10-NB
Show Full Configuration
5/8 inch UNF
-100 to +20°Cdp
Standard HDPE guard (protection against fine particulate <10 μm)
85 to 265 VAC
10m (32.8 ft.) length with mini-DIN mating socket
Without sampling block
 $2,345.00 1 in stock
EA2-OL-HYG-(-100/20C)-HD-AC-SC10-WB
Show Full Configuration
5/8 inch UNF
-100 to +20°Cdp
Standard HDPE guard (protection against fine particulate <10 μm)
85 to 265 VAC
10m (32.8 ft.) length with mini-DIN mating socket
With sampling block
 $2,440.00 1 in stock
EA2-OL-HYG-(-166/68F)-HD-AC-SC10-WB
Show Full Configuration
5/8 inch UNF
-166 to +68°Fdp
Standard HDPE guard (protection against fine particulate <10 μm)
85 to 265 VAC
10m (32.8 ft.) length with mini-DIN mating socket
With sampling block
 $2,440.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 12 weeks". Click here to select options
