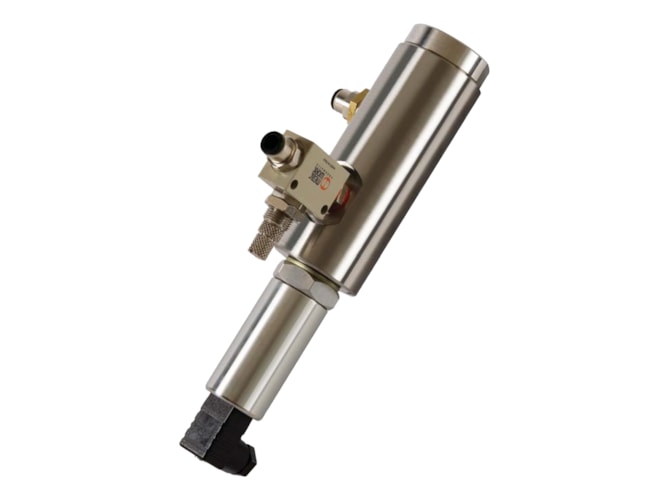

Michell Instruments Easidew Sampler

Self-contained, general purpose sampling system designed for atmospheric or dew point pressure measurements.

Starting at $866.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 4-6 weeks
Product Manual Product Specs

Features

  • Integral particulate filter (99.5% removal of 0.3μm)
  • Gas Flow Rate: 1 to 5l/min (2.12 to 10.59scfh)
  • Operating Pressure: 1 MPa (10barg/145psig), high pressure option of 13.8 MPa (138 barg/2000psig) available
  • Operating Temperature -40 to 60°C (-40 to 140°F)
  • Sensor Port: 3/8 or 5/8in UNF process connections
  • Metering valve for flow control
  • Single block design for faster measurement response
  • Gas Connections:
    • Quick Connect fittings for 6mm O/D plastic tubing or 1/4in Swagelok tube fittings (PTFE or FEP recommended)
    • *standard push fittings are not vacuum rated*
  • Materials of Constructions
    • Block and Cap: 316 stainless steel
    • Flow Control Block: Aluminium
    • Couplings: Nickel plated brass
  • Environmental IP66 (NEMA 4)

What's in the Box

  • Sample P.T.F.E. tube with 0.5m (19.68 in) pig-tail vent tube, to prevent back-diffusion
  • Mounting bracket (factory-fitted, removable)
  • Direct mounting option: 2 M6x5mm deep mounting fixings (pre-installed)
  • Flow control valve (factory-fitted)

The Michell Instruments Easidew Sampler is a general purpose sampling system for quick and accurate measurements of line pressure dew point in various compressed air and industrial gas applications. A flow control valve is outfitted by the factory to the outlet port, which allows for the setting of the optimum gas flow between 1 and 5 litres per minute. The Easidew can also be reconfigured to make atmospheric measurements through the easy exchange of the flow control valve and the gas pipe connection positions at the inlet port. The standard operating pressure of the Easidew is up to 1MPa, with a high pressure option of 13.8MPa available.

Improved response time when taking measurements is a benefit of the Easidew's streamlined, single block stainless steel assembly. In addition to flow and pressure regulation, the Easidew is equipped with an in-line particulate filter, reducing the chance of contamination, and increasing accuracy of readings. The Easidew comes with a mounting bracket factory-fitted, easily adjustable for various installation requirements. For direct mounting, two M6x5mm deep mounting fixings (pitch at 20mm), are pre-installed into the block.

Applications

  • Compressed air dryers
  • Plastic molding
  • Ozone generators
  • Medical gases
  • Pneumatics
  • Breathing air
  • Welding gases
