The UE Systems Ultraprobe 3000 long range ultrasonic inspection system is lightweight, digital, and fully
equipped to detect energy waste, and locate mechanical and electrical problems.
Data from either pre-planned routes or troubleshooting can be easily viewed and stored.
UE Systems' spin and click technology simplifies sophisticated inspection processes. With only two controls,
the user is able to customize inspection modes, quickly change frequency or sensitivity, easily select functions,
store data, and download data via USB output. The display panel shows the calibrated decibel readout and a
16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold during scanning.

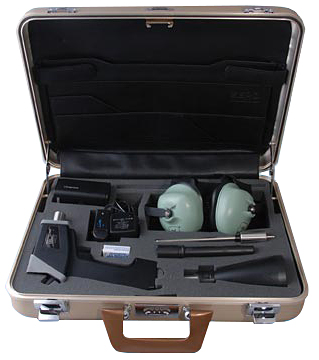

The Ultraprobe 3000 LRM kit includes the Ultraprobe 3000 with pistol grip; a scanning module for locating airborne ultrasound
such as pressure, vacuum and electrical emissions; a rubber focusing probe for narrowing reception band of scanning module and for
blocking out ambient ultrasound; a stethoscope probe for monitoring internal ultrasound such as in bearings, steam traps and valves;
an extension probe kit to increase stethoscope contact range; a warble tone generator with amplitude selection switch for use in
tone test method; and a long range module for more accurate and extended range for leak detection or electrical emissions.
The Ultraprobe 3000's on-board data logging uses a data management system that provides multiple data views,
a history table and spreadsheets, trend charts, and the ability to export files to MS Excel.
Ultraprobe 3000 Ultrasonic Inspection System Applications
- Electrical and mechanical inspection
- Gear box inspection
- Heat exchangers, boilers, condensers
- Pressure and vacuum leak detection
- Valve leak detection
- Compressed air leak detection
- Leak testing in tanks and pipes
- Steam trap testing
- Bearing testing/trending
