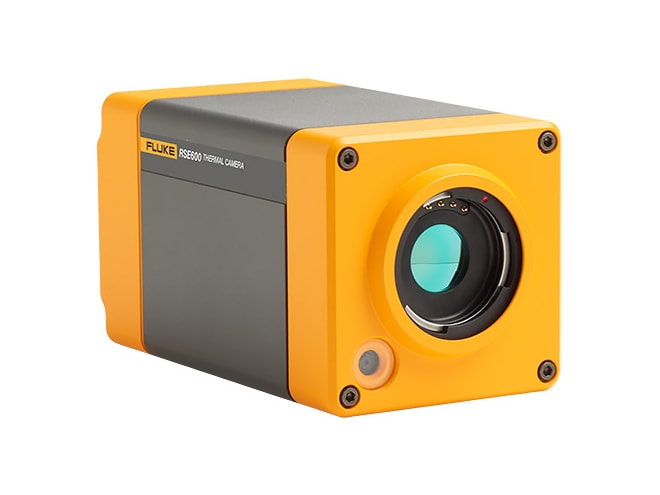

Fluke RSE600 Infrared Camera
307,200 pixels (640 x 480), 14 to 2192°F, sensitivity < 0.040°C, 60Hz frame rate, with SmartView software and automatic MultiSharp focus
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET
- 14 to 2192°F (-10 to 1200°C) temp measurement
- ±3.6°F (±2°C) or 2% accuracy (whichever is greater)
- 6in minimum focus distance
- 34°H x 25.5°V FOV
- 0.93 mRad spatial resolution
- 40mK, ≤0.040°C at 30°C thermal sensitivity
- IP 67 dust & waterproof
- 2-year warranty
What's in the Box
- Standard infrared lens
- AC power supply
- Ethernet cable
The Fluke RSE600 infrared camera provides superior automatic focus for accurate high quality thermal images, eliminating the potential for misdiagnosis and enhancing quality assurance. Stream up to 60 frames of data per second directly to a laptop to closely monitor even the slightest temperature differences. A live line marker tracks temperature variations with a graph overlay on the thermal image.
Infrared data can be thoroughly documented and analyzed with SmartView desktop software which enables you to adjust focus, blend digital and infrared images, fine-tune level and span, add notes to images, and capture images and videos.
The RSE600 can be mounted to an adjustable stand or with the optional mounting bracket accessory. As a semi-fixed camera it offers consistency throughout the testing process. Optional lenses include 2x telephoto, 4x telephoto, wide angle, and macro lenses to capture images close up or from a distance.
