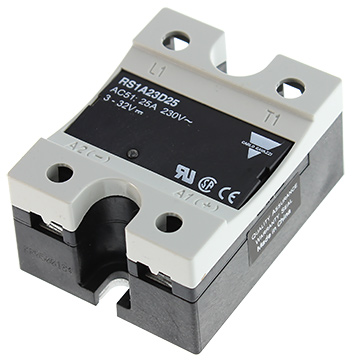

Carlo Gavazzi RS1A Series
Starting at $34.00

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open 8:00am to 5:30pm ET

Features

  • Zero switching AC solid state relay
  • Direct copper bonding (DCB) technology
  • LED indication
  • Clip-on IP20 protection cover
  • Self-lifting terminals
  • Housing free of moulding mass
  • Operational ratings up to 40AACrms and 480VAC
  • Up to 1200Vp non-repeatable voltage
  • >4000 VACrms opto-insulation
  • Control output options available
  • Integrated snubber network for select models

The zero switching Carlo Gavazzi RS1A series solid state relay with alternistor output is an inexpensive solution for resistive loads. The Carlo Gavazzi RS1A series solid state relays' zero switching relay switches ON when the sinusoidal curve crosses zero and switches OFF when the current crosses zero. With an LED to indicate the status of the control input, the Carlo Gavazzi RS1A series solid state relays' clip-on cover is securing touch protection (IP 20). Output terminals can handle cables up to 16 mm2.

Part Number Price Available
RS1A23D25
Show Configuration
Base Price
$34.00
Rated Operational Voltage
230 VACrms
Control Voltage
4.5 to 32 VDC
Rated Operational Current
25 AACrms
Reconfigure
$36.00 27
RS1A23D40
Show Configuration
Base Price
$34.00
Rated Operational Voltage
230 VACrms
Control Voltage
4.5 to 32 VDC
Rated Operational Current
40 AACrms (+$14.00)
Reconfigure
$48.00 4
RS1A23A1-25
Show Configuration
Base Price
$34.00
Rated Operational Voltage
230 VACrms
Control Voltage
110 VAC ±15% (+$9.00)
Rated Operational Current
25 AACrms
Reconfigure
$43.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
