MTL 1000 Signal Conditioning Isolators

DIN-rail mount module with an embedded power bus that can accept 7 different inputs. Learn more...

Starting at $166.00 Starting at $149.40

View Company Reviews
Manufactured
Includes
Availability
  • Call for availability
Product Manual Product Specs (18 Files)

Features

  • Embedded power-bus reduces power wiring up to 90%
  • High packing density with 6.2mm wide slimline modules
  • Redundant power feed option for increased availability
  • Status indication and alarm relay for quick maintenance
  • Improved signal quality enhances plant performance

The MTL 1000 signal conditioning isolators are easy to install and feature a slim-line design (6.2mm width) enabling high packing density. The optional power-bus feature reduces power wiring by up to 90% by providing power directly to the modules, making for quicker installation at a lower cost and the pre-fitted DIN rail power connectors allow for easy future expansion. Common applications where MTL signal conditioning isolators are useful include elimination of grounding fault currents, signal conversion, noise reduction and signal repeat.

Available in a variety of configurations, the MTL 1000 signal conditioning isolators can accept many different inputs including 2/4-wire transmitters, Smart 2/4-wire transmitters, Type J and K thermocouples, PT100 Type RTD sensors, 3-wire potentiometers, switch/proximity detectors and voltage/current inputs. Status indication and alarm relays alert the control room of a failure for quick resolution. HART communications are also supported, allowing for data transfer from HART-compatible field devices. A redundant power feed can also be added so power can be maintained in case one power supply fails.

MTL 1991 Power Feed & Alarm Module
MTL 1991 Power Feed & Alarm Module

Provide single or dual power to MTL 1000 signal conditioning isolators with power monitor alarm.

$166.00
MTL PBUS02 Power Bus Connection Terminals
MTL PBUS02 Power Bus Connection Terminals

Used for a single power supply feed directly into the power bus.

$14.00

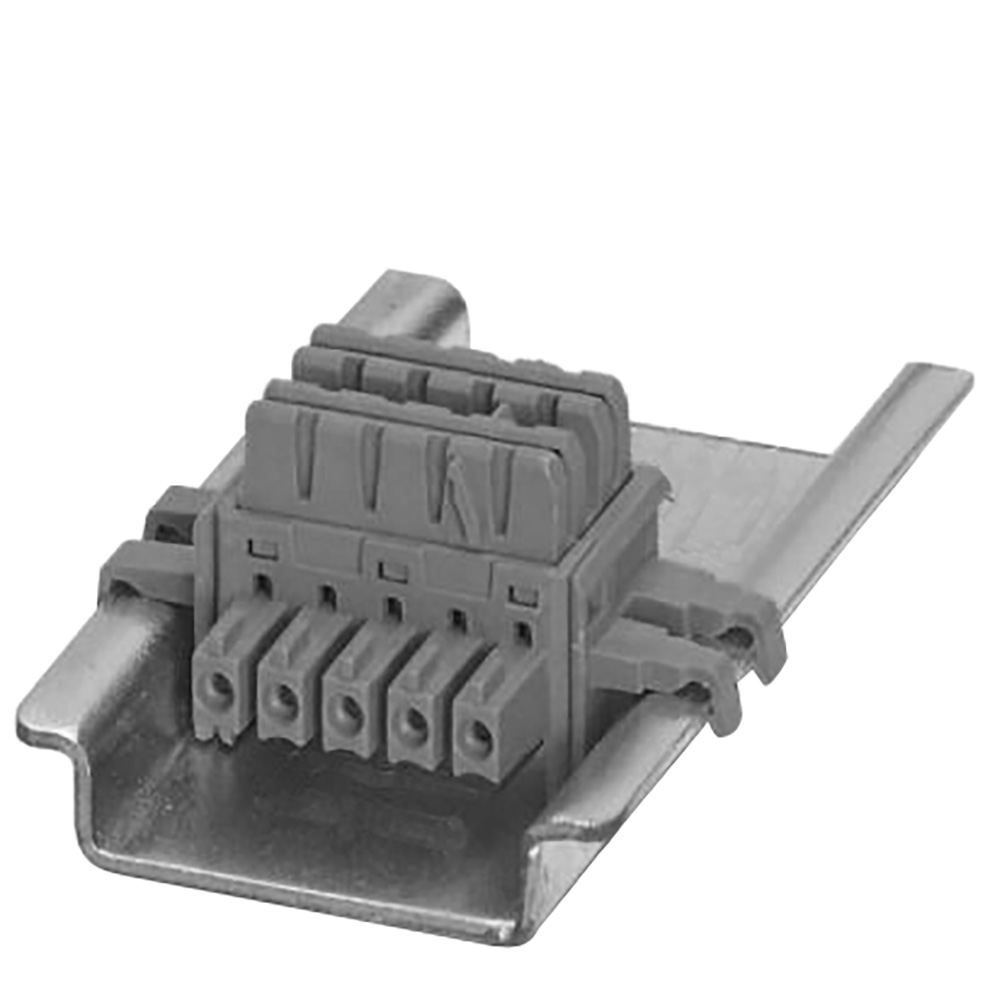

MTL PBUS6.2 Power Connectors
MTL PBUS6.2 Power Connectors

DIN rail power bus connectors for MTL 1000 signal converter isolators.

$166.00

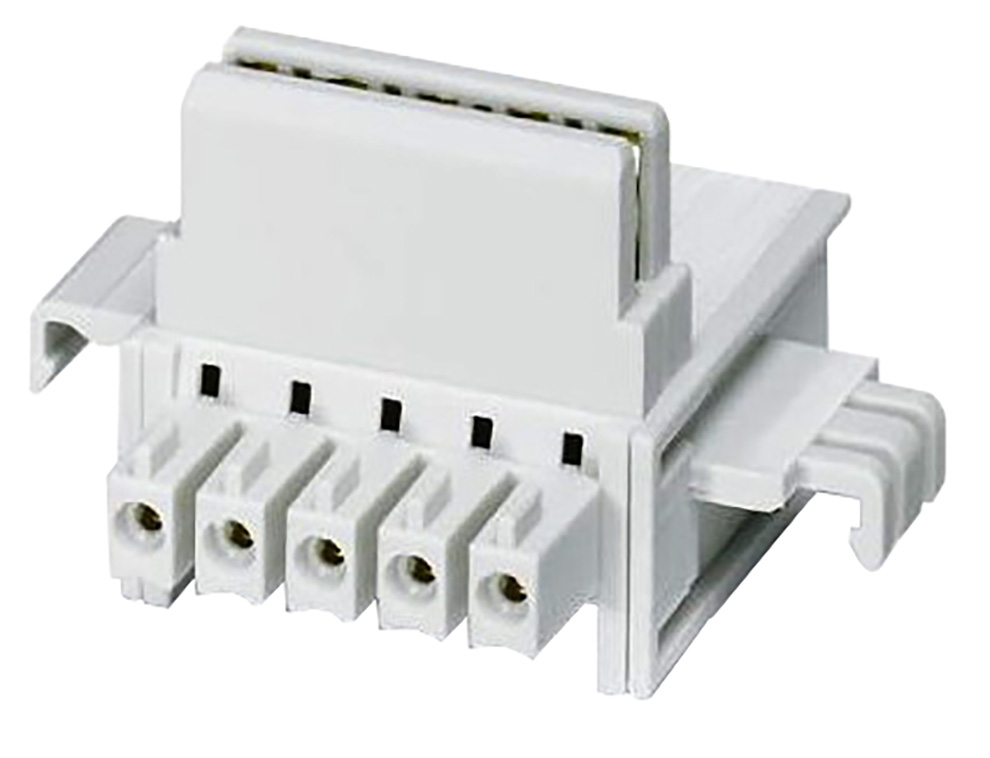

MTL PBUS17.5 Din Power Rail Connector
MTL PBUS17.5 Din Power Rail Connector

Pack of 10 trip amp power connectors for 1 module position.

$166.00
