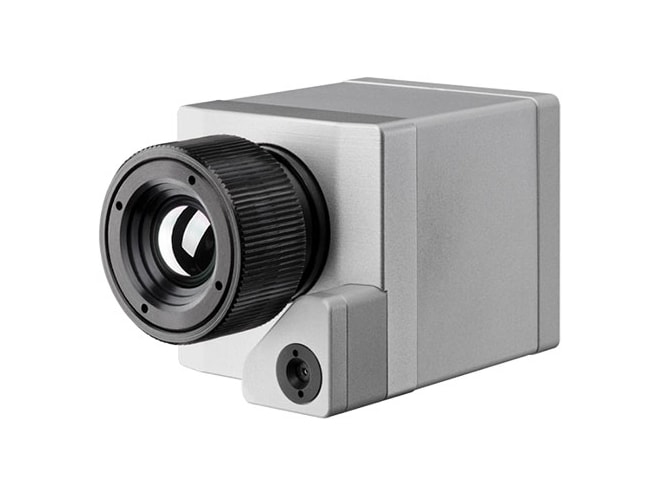

Optris PI 200 / 230 Infrared Camera

19,200 (160x120) pixel resolution, -4 to 2732°F, 128Hz frame rate with choice of 54 x 40° or 30 x 23° optics.

Features

  • ±3.6°F or ±2% accuracy
  • 7.5 to 13µm spectral range
  • Temperature ranges
    • -4 to 212°F
    • 32 to 482°F
    • 302 to 1652°F
    • 392 to 2732°F
  • 160 x 120 pixel resolution
  • 6° x 5°, 23° x 17°, 41° x 31°, or 72° x 52° lens
  • 128Hz frame rate
  • 0-10VDC analog output
  • 0-10VDC analog input
  • Trigger 2-24VDC digital input
  • 5 to 24VDC
  • USB power supply
Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Looking for a fever screening solution? Here's a list of approved items.

What's in the Box

  • 1 lens
  • Table tripod
  • Focussing tool
  • 3.3ft USB cable
  • 3.3ft PIF cable with terminal block
  • Optris PI Connect software package
  • Aluminum case

The Optris PI 200 / 230 infrared camera combines real-time and thermographic videos to provide reference for thermal image measurements. The visual image can be combined with a thermal image and plotted synchronistically. Transparency and crossfade can be adjusted from 0 to 100% and defined temperature thresholds can be superimposed in order to highlight critical temperatures.

The Optris PI Connect Software offers extensive analysis of measurement data both on and off line. It can be customized to suit the demands of even the most unique applications. Features include automatic process and quality control, video recording, snap shot, and remote control of the camera. The PI connect software is necessary to interpret measurement results and is compatible with all netbooks, notebooks, and computer systems using Windows 7, 8, and 10.

Optris ACPICERT Calibration Certificate
Optris ACPICERT Calibration Certificate

Option for high temperatures up to 2192°F.

Starting at $200.00
Optris Advanced Cooling Jacket
Optris Advanced Cooling Jacket

Protection for harsh industrial environments, operates at ambient temperatures up to 599°F, available with additional mounting support.

Mfg. has some models in stock
Starting at $1,400.00
Optris Focusing Unit & Front End
Optris Focusing Unit & Front End

Required component for Optris advanced cooling jacket.

Mfg. has some models in stock
Starting at $195.00
Optris ACPIMB Mounting Base
Optris ACPIMB Mounting Base

Stainless steel mounting base adjustable in 2 axes .

$70.00
Optris ACPIPH Protective Housing
Optris ACPIPH Protective Housing

Stainless steel protective housing with mounting base.

$150.00
Optris Outdoor Protective Housing
Optris Outdoor Protective Housing

24VDC housing for camera, USB server & industrial process interface with integrated heater, protection window & air purge collar.

Mfg. has some models in stock
Starting at $1,285.00
Optris ACOPHWM Wall Mount
Optris ACOPHWM Wall Mount

For Optris outdoor protective housing .

$80.00
Optris ACCJAPIPIFMA Industrial Process Interface
Optris ACCJAPIPIFMA Industrial Process Interface

For integration into outdoor protective housing, 500 VACRMS isolation voltage between PI camera & process, 25cm connection cable.

$250.00
Optris Industrial Process Interface with Connection Box
Optris Industrial Process Interface with Connection Box

Available with 5, 10, or 20m of cable, cable glands or right angle connector & temperatures up to 482°F.

Mfg. has some models in stock
Starting at $335.00
Optris ACPIUSBSGB USB-Server Gigabit
Optris ACPIUSBSGB USB-Server Gigabit

USB-Ethernet converter for PI series infrared cameras, includes 24VDC power supply.

$580.00
Optris ACPINBPH Protective Housing
Optris ACPINBPH Protective Housing

For PI NetBox, IP 65 rated.

$325.00
Optris ACPIPOE PoE Injector
Optris ACPIPOE PoE Injector

For PI NetBox or USB-Server.

$126.00
Optris Cooling Jacket Protective Grid
Optris Cooling Jacket Protective Grid

Available in 2 & 3.15mm size, recommended component for the Optris cooling jacket, not for PI series with 48° lens.

Mfg. has some models in stock
Starting at $136.00
Optris Cooling Jacket Mounting Bracket
Optris Cooling Jacket Mounting Bracket

Available as adjustable in either one or two axes .

Starting at $185.00
Optris PI NetBox
Optris PI NetBox

Mini PC with hardware & software integrates with the PI Infrared Camera series for a stand-alone system or USB to Ethernet adapter.

$1,870.00
Optris PI Series Lens
Optris PI Series Lens

Interchangeable lenses for PI series thermal imagers in various field of view options.

Starting at $1,780.00
Optris ACCJAPWPI2XXLW Protective Window
Optris ACCJAPWPI2XXLW Protective Window

Protective window (67 x 3mm/ ZnS) for PI2xx (VIS + IR transmittive) and for PI LT, PI G7 if used together with air purge laminar .

$1,280.00
Optris ACPIIAC IR App Connector
Optris ACPIIAC IR App Connector

USB 45cm cable and adapters for USB-C or Mini-USB for PI series and Xi 400 cameras.

Starting at $52.00
Optris CoolingJacket Mounting Flange
Optris CoolingJacket Mounting Flange

Fitting for connection to pipe flange, CoolingJacket and CoolingJacket Advanced.

Starting at $130.00
Optris PI Carrying Case
Optris PI Carrying Case

Aluminum case for PI160, PI2xx, PI400, PI1M, PI08M, and PI05M model cameras.

$79.00

Manufacturer Stock

This stock is typically available to ship in 2 - 3 working days.

Part Number Price Available
OPTPI200O23T900
Show Configuration
Call for pricing 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
