Erbessd Reliability EIMU Vibration Monitor

Real time measurements, remote analysis, 2 channels recorded simultaneously, ideal for difficult access machines.

Retired products cannot be ordered

The Erbessd Reliability Phantom Remote Monitoring System is the recommended replacement.

View Company Reviews

Part Number

EIMU

Manufactured

By Erbessd Instruments

Includes

FREE Ground Shipping
FREE Lifetime Tech Support

Product Specs

Features

Real team measurements
remote analysis
Ideal for difficult access machines
2 channels recorded simultaneously
12 channels total
1 to 9 seconds
44,100Hz sample rate
30s to 24hr recording cycle times

What's in the Box

12 BNC connectors
LCD 16x2 screen
1 CD software
User manual

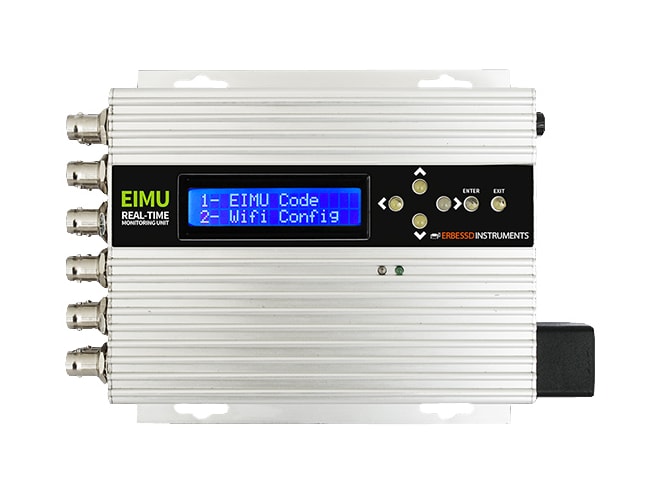

The Erbessd Reliability EIMU Vibration Monitor is designed to monitor in Real Time the vibration condition of any machine, it's a low-cost and easy to install modular system. The continuous monitoring optimizes supervision time avoiding the use of permanent human presence to control the system. All data collected is sent continuously through WiFi or Ethernet cable to the server, and this information can be seen and processed any time and anywhere in the world.

Each EIMU records 2 simultaneous channels (of the 12 available) and sends the information through the net (intranet or internet) to a server where it's stored. Once the data is saved, the EIMU switches to the next 2 channels and records them doing the same process until completing the whole sequence.

The EIMU works with a MySQL database and all data can be exported to different types of databases (SQL, MS Access, etc.) to meet the needs of a website or other type of server. Erbessd Instruments has created a specific website called EI Analytic that allows the user to remotely access this data and thus determine the condition of the machinery in real time from anywhere in the World.

Spec Sheets

Erbessd Reliability EIMU Vibration Monitor Datasheet PDF (656 KB)
