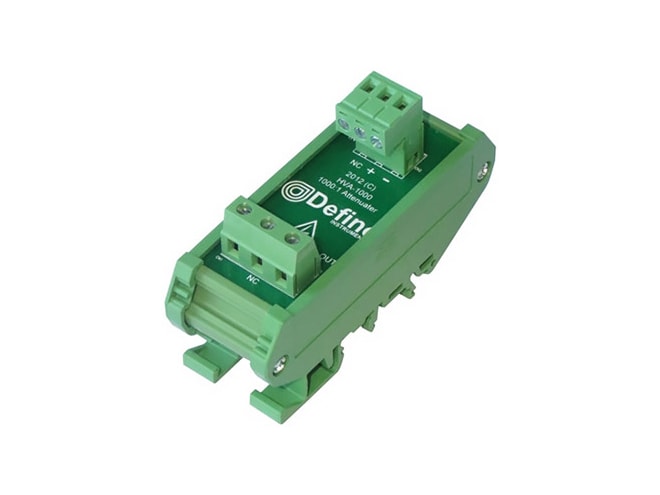

Define Instruments HVA-1000 High Voltage Attenuator
Differential resistive attenuator that accepts a maximum of 1000VDC input and outputs a signal reduced by a factor of 1000
Price
$38.00
Availability
6 in stock
Need Help? Call a Temperature Engineer 1-800-884-4967
We're open 8:00am to 5:30pm ET
Ron J.
Temperature Engineering Lead
23 years at Instrumart
Jack N.
Applications Engineer
4 years at Instrumart
Noah P.
Applications Engineer
5 years at Instrumart
Alex A.
Senior Applications Engineer
13 years at Instrumart
Shawn D.
Senior Applications Engineer
14 years at Instrumart
Dwight M.
Senior Applications Engineer
23 years at Instrumart
Luke M.
Applications Engineer
Features
- 1000VDC maximum input voltage
- 3.8MΩ input impedance
- 1000 (±0.1%) attenuation factor
- 3.8KΩ output impedance
- 50ppm/°C maximum ambient temperature drift
- 35mm DIN rail mount
- CE approved & 5-year guarantee
This product is an accessory for the following products:
Flexible 16-channel control and monitoring station that logs data onto a 1GB micro SD card
Connect PLCs & other discrete control systems to the Cloud with 4, 12, or 16 isolated analog universal inputs & logging for up to 32MB
Select options for pricing
Compact DIN rail mount design, analog signal transmitter with 4, 12 or 16 isolated universal inputs
16 channel monitoring & control station with choice of isolated or non-isolated inputs
The Define Instruments HVA-1000 high voltage attenuator reduces a high voltage input to a low voltage output which can then be fed safely into most industrial instruments for measurment. It uses a unique differential divider to provide resistive protection to both the positive and negative sides of the output.
All Zen units with universal input are capable of accepting an attenuator input.
