Starting at $7,141.00

Not in stock. Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Generate up to 1500psi (100bar) pneumatic pressures
    • 15,000psi (1000bar) hydraulic
  • Measure & source electrical, frequency, & temperature
    • mA, mV, V, ohms, Hz, RTD’s & thermocouples
  • Single touch configuration of common devices
  • Data log up to six channels simultaneously (8GB)
  • Calculates errors between inputs & outputs
  • HART, Fieldbus, & Profibus communicator options
  • Approved for zone 1 & 2 classified hazardous areas
  • CE Marked & IP54 ingress protection

What's in the Box

  • Test leads
  • Rechargeable lithium ion battery
  • Universal mains adapter & charger
  • Calibration certificate
  • Quick reference guide

The Druck DPI 620 Genii-IS multifunction calibrator provides simultaneous measurement and source capabilities for the setup, testing and calibration of most types of process instruments including transmitters, transducers, gauges/indicators, switches, proximity detectors, counters, RTDs, thermocouples and valve positioners.

Its modular design and functionality means it can be expanded over time and tailored to applications as your needs change or adapted in the field to suit multiple applications. Three pressure generation base station options are available; as well as pressure module carrier and a wide range of interchangeable pressure modules from 25mbar (10inH2O) to 1,000bar (15,000psi) with 0.005%FS accuracy. No tools or seals are required to transition.

Optional HART communication protocol gives the ability to measure and source analog variables without secondary calibration equipment and provides:

  • Internal mA loop power & communicator power hubs
  • Software & complete device description (DD) library with free updates
  • Internal menu selected 250 ohm loop resistor

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

Druck PM620-IS Pressure Modules
Intrinsically safe interchangeable pressure modules
$2,118.00
Druck PV620-IS Pressure Station
Intrinsically safe advanced pressure measurement and generation system
$827.00

Cables

Druck USB Cables
Connect the IDOS USB module to either a PC or the DPI6xx, RS-232 interface version optional
$18.41
In Stock

Batteries/Chargers

Druck IO620IS Battery
Spare or replacement battery for the DPI620-IS
$614.00
Druck Battery Charger
Battery charger for DPI620-IS
$271.00
Druck Battery Charging Cradle
Battery charging cradle for DPI620-IS
$75.80

Cases

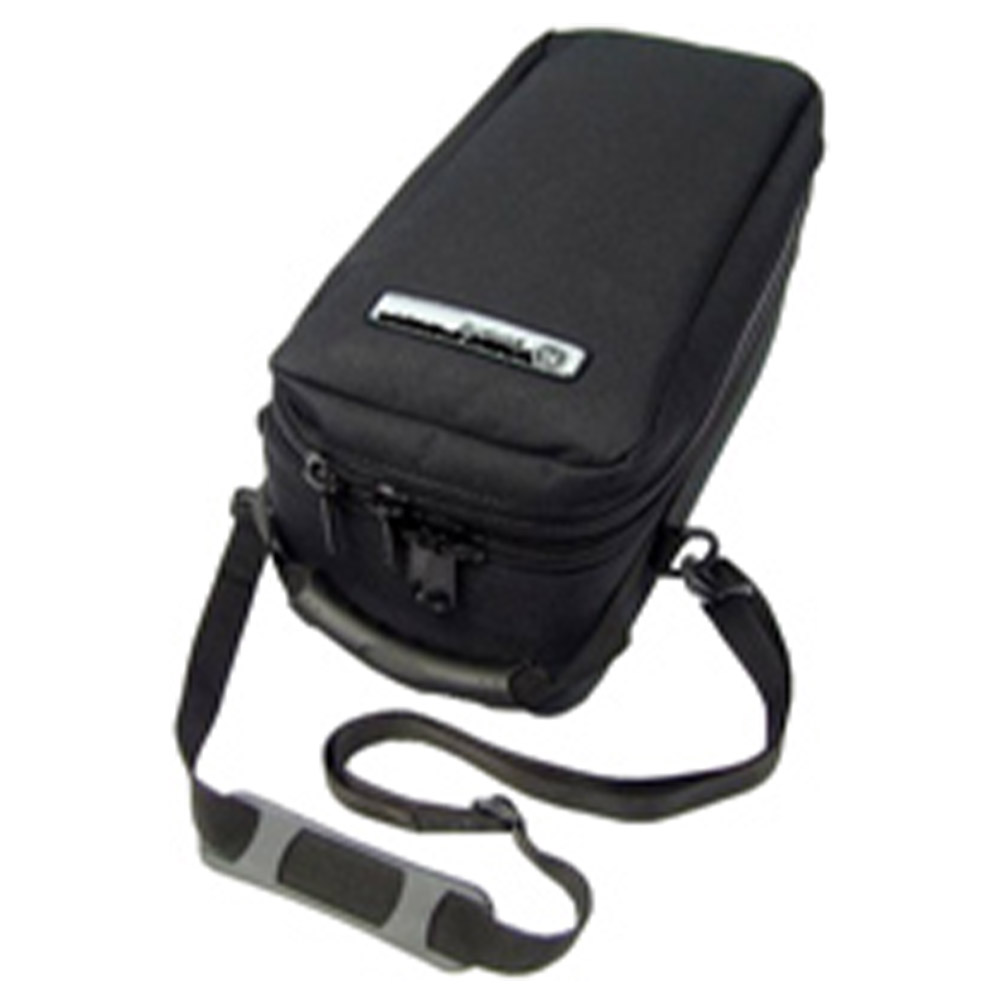

Druck System Carrying Case
Druck carrying case for DPI620-IS system and components
$233.00
In Stock
Druck Pressure Station Carrying Case
Druck carrying case for PV620-IS pressure station
$189.00
Druck Modular System Transit Case
Druck Modular System Transit Case
$964.00
Pelican Cases
Watertight, crushproof and dustproof cases for the ultimate in protection
$49.49

Accessories

Please consider these optional accessories.

Druck Blanking Plug
Allows the PV62X or DPI612 to be used as a pressure generator independently of the DPI620 and PM620
$69.60
In Stock
Druck Pressure Adapter Set
Set of test point tool-less quick fit adapters to connect the pressure system to the extension hoses of device being tested
$160.00
In Stock
Druck Comparator Adaptor
Allows the PV 62X pressure station to be used as a comparator
$376.00
In Stock
Druck Hydraulic Hose Kit
Druck hydraulic hose kits for DPI620-IS
$698.00
Druck Pneumatic Hose Kit
Druck pneumatic hose kit for DPI620-IS
$514.00
Druck Pressure Relief Valve
Protects the PM 620 pressure module and the device under test from overpressure
$262.00
In Stock
Druck Swivel Adaptor
Swivel adaptor- 1/8" NPT Female
$45.90

Applications

This product can be used in the following applications:

Application Notes

Here's how some of our customers used this product.

Intrinsically Safe Approval for Use in an Oil Refinery

The Background: Our customer is an oil refinery seeking an Intrinsically Safe multifunction calibrator with a pressure source and HART communications.

The Problem: Refineries typically have hundreds of gauges, sensors, switches, detectors, positioners, and transmitters which all require periodic calibration to maintain accuracy. The range of calibration needs requires electrical calibrators, frequency calibrators, temperature calibrators, pressure calibrators, and loop calibrators. That’s a lot of equipment to haul around. Because the customer utilizes HART communications and needs an Intrinsically Safe unit, there are very few all-in-one solutions to the customer’s needs.

The Solution: We were able to demonstrate to the customer how the GE Druck DPI620-Genii-IS multifunction calibrator can help them. The DPI620-Genii-IS is a full-function electrical and temperature calibrator with a fully functional HART communicator that is Intrinsically Safe for use in "Hot Areas". When this unit is kitted up with the GE Druck PV620 pressure base station and pressure modules, it becomes an Intrinsically Safe pressure calibrator as well.
