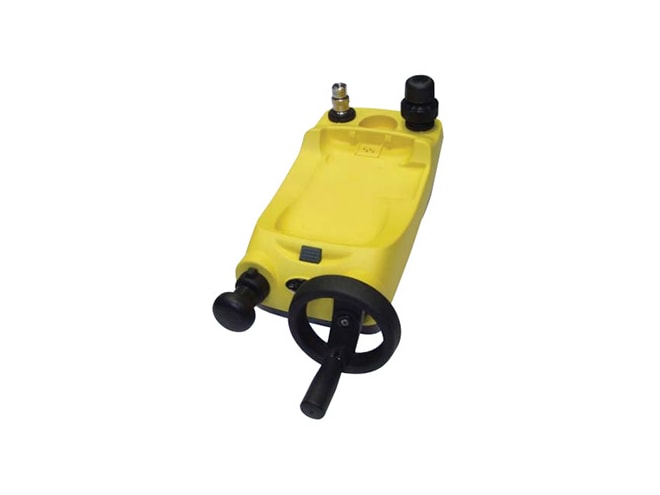

GE Druck PV620-IS Pressure Station
Starting at $802.00

Call for availability [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

The GE Druck PV620-IS Pressure Station is a component of the GE Druck Intrinsically Safe Advanced Modular Calibration System

Features

  • Pressure measurement and generation
  • Pneumatic or hydraulic
  • For pressures from vacuum up to 15,000psi
  • Compatible with PM620-IS pressure modules and DPI620-IS multifunction calibrator
  • Standalone replacement for hand pumps
  • Bench-top use as comparators
  • Dual channel measurement available (MC620-IS)
  • ATEX and IEC approved Intrinsically Safe

The GE Druck intrinsically safe pressure stations consist of either the PV620-IS pressure generator or the MC620-IS pressure module carrier. GE Druck pressure stations work in conjunction with DPI620-IS intrinsically safe multifunction calibrator and PM620-IS pressure modules to form the GE Druck AMC Advanced Modular Calibration System.

The GE Druck PV620 pressure station is available in three models:

  • The PV621-IS is a pneumatic pressure generator for pressures vacuum to 300 psi.
  • The PV622-IS is a pneumatic pressure generator for pressures vacuum to 1500 psi.
  • The PV623-IS is a hydraulic pressure generator for pressures up to 15,000 psi.

All models are ATEX and IEC approved Intrinsically Safe for stand-alone use in hazardous areas.

Each GE Druck pressure station is designed for stand-alone operation as a pressure generator and can replace conventional hand pumps to provide greater efficiency and ease of use. GE Druck pressure stations can also be used on the workbench as a comparators. Combining any of the pressure stations with a PM620-IS pressure module and the DPI620 calibrator creates a uniquely capable, self-contained pressure calibrator.

The GE Druck MC620-IS pressure module carrier can be used in place of the GE Druck PV620-IS pressure station. The MXC620-IS can be combined with pressure modules and the DPI620 to add dual channel pressure measurement capability that can be re-ranged in seconds.

Required Components

These additional components are required for the operation of your product. We strongly advise you to purchase these components unless you already own them or own a suitable alternative.

GE Druck PM620-IS Pressure Modules
Intrinsically safe interchangeable pressure modules
$2,056.00

Cases

Carrying cases, spare cases

GE Druck System Carrying Case
GE Druck carrying case for DPI620-IS system and components
$226.00
In Stock
GE Druck Pressure Station Carrying Case
GE Druck carrying case for PV620-IS pressure station
$183.00

Accessories

Please consider these optional accessories.

GE Druck Blanking Plug
Allows the PV62X or DPI612 to be used as a pressure generator independently of the DPI620 and PM620
$67.55
In Stock
GE Druck Pressure Adapter Set
Set of test point tool-less quick fit adapters to connect the pressure system to the extension hoses of device being tested
$155.00
In Stock
GE Druck Comparator Adaptor
Allows the PV 62X pressure station to be used as a comparator
$365.00
In Stock
GE Druck Hydraulic Hose Kit
GE Druck hydraulic hose kits for DPI620-IS
$677.00
GE Druck Pneumatic Hose Kit
GE Druck pneumatic hose kit for DPI620-IS
$499.00
GE Druck Pressure Relief Valve
Protects the PM 620 pressure module and the device under test from overpressure
$254.00
In Stock
GE Druck Swivel Adaptor
Swivel adaptor- 1/8" NPT Female
$44.56
GE Druck IO620-IDT621 Dirt Moisture Trap
Remove solid and liquid contaminants from the pressure media, maximum pressure 300 psi (20 bar)
$343.00
In Stock
GE Druck IO620-IDT622 Dirt moisture trap
Remove solid and liquid contaminants from the pressure media, maximum pressure 1500 psi (100 bar)
$492.00
In Stock

Applications

This product can be used in the following applications:
