Starting at $41.49
  • Usually ships in 4-6 weeks

Overview

Features

  • Strap-on temperature sensor
  • Measuring ranges:
    • Passive output: -40 to 230°F (-40 to 110°C)
    • Active output: -40 to 158°F (-40 to 70°C)
  • Accuracy: ±0.54°F (±0.3°C)
  • IP65 / NEMA 4 protection class
  • 0 to 10 V or 4-20 mA
  • Aluminium contact surface
  • External mounting holes
  • Bayonet screws
  • Hose clamp
  • Aluminum contact surface

Description

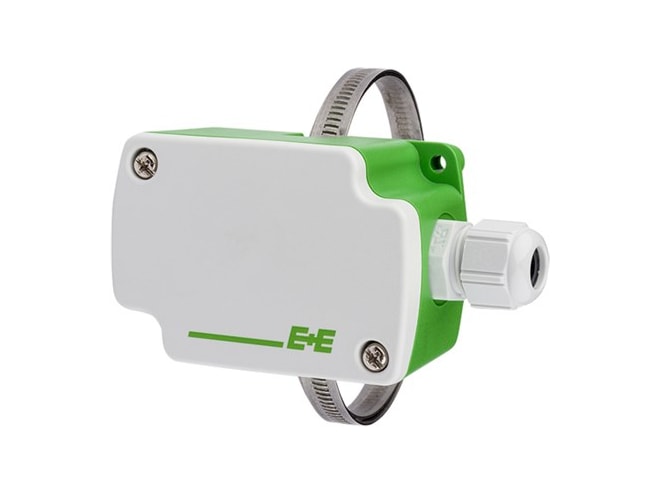

The E+E EE441 Temperature Sensor are strap-on sensors designed for temperature measurements on round ducts and pipes. In addition to active outputs 0 to 10 V or 4-20mA various types of sensing elements such asPt1000, NTC10k or Ni1000 are available for passive temperature measurement. The innovative IP65 housing and the mounting concept allow for fast and easy installation. Typical applications are heating systems (warm and cold water pipes) and solar collectors.

Applications

This product can be used in the following applications:
