Features

  • Provides greater safety than traditional suspension configurations
  • Complete package for ease of installation
  • Built-in electrical isolation without having to use isolators (not available on 20,000 lb version)
  • Provides correct load cell loading even in difficult installations
  • Dramatically reduces overall length
  • Capacities from 300 to 20,000 lb
  • Clevis mounts with nylon insulating washers
  • PTFE lined rod end ball joints (not available on 20,000 lb version)
  • Completely isolates load cell from stray currents
  • Grounding strap for electrical continuity

This product is an accessory for the following products:

Rice Lake ITCM Weigh Modules
Features clevis and rod-end ball-joint assembly to provide excellent performance in suspended tank and hopper weighing applications
Select options for pricing

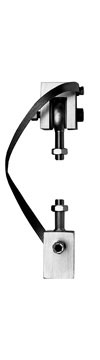

The Rice Lake ITCM hardware kit is a mounting assembly designed for tension mounting s-beam load cells in suspended hopper assemblies and mechanical scale conversions. The ITCM hardware kit incorporates clevis and unique rod end ball joint assemblies to reduce the overall length to less than half of the traditional tension cell mounts, while providing correct load alignment. In addition, the load cell is completely electrically isolated from stray currents, a major cause of load cell failure. To complete the design, a grounding strap connects the two clevis assemblies to further guarantee safety to your load cells.
