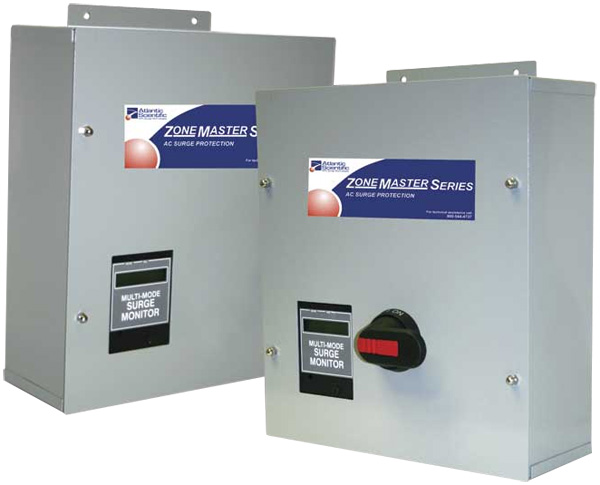

MTL ZoneMaster Pro Surge Protectors
Combines all the advantages of all mode protection with features and options to meet the needs of the most complex protection requirements
Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET
- Enhanced redundancy built into each module
- Thermal and short circuit fusing
- Surge counter with fault monitor and audible alarm
- Low let-through performance with high current impulses
- 100k or 200k (Type 1) AIC short circuit rating
- Replaceable bolt-in modules
- UL 1449 3rd Edition Listed
- UL Type1, In = 20kA, 200kA SCCR
- 15 year product warranty
The MTL ZoneMaster PRO Series of surge protection devices combines all the advantages of all mode protection with features and options to meet the needs of the most complex protection requirements. The ZoneMaster PRO series is available with surge current capacities from 200kA to 400kA along with models designated Type 1 SPDs. This along with the different international voltages available make the ZoneMaster PRO the most versatile product on the market.
ZoneMaster PRO Series features modular construction, individual modules are bolted to a large surge return plate to minimize transient impedance. These color coded replaceable modules with a UL94-5V rated plastic casing are supplied mounted within a durable metal enclosure. The ZoneMaster PRO units are easy to install via simple surface mounting or optional flush mounting. Large block Metal Oxide Varistor (MOV) protection technology is utilized within all the ZoneMaster PRO range. Each of the large block MOVs are individually fused for both thermal and short circuit protection. This provides redundancy ensuring the facility is never unprotected.
Status indication is provided through a front panel display, audible, and NO/NC remote alarm contacts. Individual module status is provided by LED status indication on each module. An optional remote monitoring unit is also available providing audible and visual indication of protection status, along with features such as a test switch for checking the monitoring circuitry and an audio alarm silence switch.
The optional power filter on the MTL ZoneMaster PRO has a noise attenuation of 75dB at 100kHz - 100MHz and will attenuate 6kV transients down to just 200 volts. This power filter is UL1283 Listed and all ZoneMaster PRO devices are UL1449 3rd Edition Listed.
