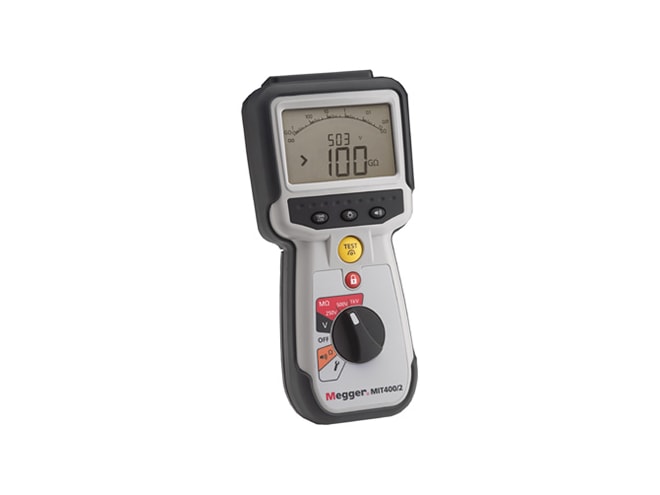

Megger MIT400/2 Insulation Tester

1006-719

Megger

3 in stock

instrumart-trustpilot-badge

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Designed for Electrical and Industrial testing
  • Insulation testing up to 1000V and 200GΩ
  • True RMS voltage measurement to 600V AC/DC
    • 0.1mV resolution
  • 2% test voltage accuracy
  • Stabilized insulation test voltage
  • Live circuit detection and protection
  • Faster continuity testing from 0.01Ω to 1MΩ
  • IP54 rated case to reduce the chances of water ingress
  • CAT IV 600V / CAT III 1000V

What's in the Box

  • Rubber boot with built-in stand
  • Red/black silicone test leads with probes + clips
  • Owner’s information CD
  • 6 AA alkaline batteries
  • Hard carry case

The Megger MIT400/2 insulation tester is a versatile instrument that offers testing up to 1000V and 200GΩ. Though the MIT400/2 is designed primarily for industrial applications, it offers a wide range of functions that allow it to excel in an exceptionally wide range of applications including electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance, and others.

In addition to insulation testing, the Megger MIT400/2 also offers True RMS voltage measurement to 600V AC or DC as well as single range continuity testing from 0.01Ω to 1MΩ. All measurements are accurate up to ±2%. The large main digital readout provides good visibility of all main measurement results while a second digital display provides additional data such as test mode, test voltage, supply frequency or others. The included analog arc display shows essential charge and discharge characteristics not visible on a digital display and displays as a single pointer "needle" with response similar to a moving coil meter.

The Megger MIT400/2 insulation tester is sealed to IP54, providing a weatherproof case to reduce the chances of water ingress, including the battery and fuse compartment. Rubber over-molding combines the tough shock absorbing outer protection with excellent grip providing an almost indestructible case. The MIT400/2 offers CAT IV 600V / CAT III 1000V safety protection.

Typical applications for MIT400/2 includes:

  • Commercial Avionics
  • Military Land, Marine and Air communications
  • Manufacturing/production line goods
  • Electrostatic measurement
  • Component testing
  • Battery powered traction and lifting equipment
