Starting at $117.00

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Removable terminals for easy cabling
  • Bussed power feed to other modules
  • Relay and solid state switch modules
  • Dual channel variants: 6.3mm per channel
  • Barrier protection module
  • Proximity detector inputs
  • Electronic fusing
  • Direct replacement for MTL700 Series barriers
  • Compatible terminal numbering and safety descriptions

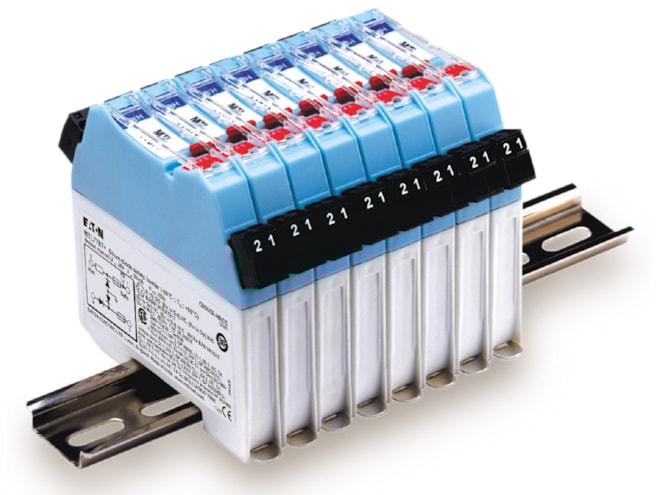

The MTL7700 Intrinsically Safe Barriers are 1- or 2-channel DIN-rail mounted shunt-diode safety barriers that use intrinsically safe explosion-protection techniques to pass electrical signals between safe and hazardous areas, while limiting transferred energy to a level that cannot ignite flammable atmospheres. Connected in series with wiring entering any hazardous area on process plant, MTL7700 Series barriers prevent explosions in all normally occurring explosive atmospheres – including mixtures of air with flammable gases, vapors, dusts and fibers – if a fault or faults develop in the safe area.

The MTL7700 is a DIN rail mounting barrier providing quick and easy installation without the need for special hardware. Removable terminals are used for ease of installation, maintenance and for providing a loop disconnect by simply unplugging the terminals from the side of the module. Wire entry is also angled to assist wiring within limited space enclosures. MTL7700 barriers clamp simply and securely onto standard T-section DIN rail, simultaneously making a reliable IS earth connection. For applications where field power is required for switch inputs or 2-wire transmitters, the MTL7700 range provides a bussed power feed facility. When used in conjunction with the MTL7798 power feed module the user has a fully protected, electronically fused supply to many barriers with no additional wiring required.

All MTL7700 Series barriers are based on the same simple principle. Each channel contains two stages of pulse-tested Zener or forward connected diodes and an ‘infallible' terminating resistor. In the event of an electrical fault in the safe area, the diodes limit the voltage that can reach the hazardous area and the resistor limits the current. A fuse protects the diodes, and the two stages of voltage limitation ensure continued safety if either stage should fail. No active output current limiting circuits are employed. All models (except MTL7707P+ and MTL7729P+, 'ia' 'IIB') are certified ‘ia' for all zones and ‘IIC' for all explosive atmospheres.

MTL DX Enclosures
DIN rail enclosure for isolators and barriers
$196.00
MTL BPL7700 Power Bus Link
For use when a number of barriers use a common power supply (bag of 100)
$89.60
MTL THR7000 DIN Rail
Nickel-plated T-section (35mm x 7.5mm) DIN rail for use in potentially corrosive atmospheres, 1 meter length
$45.30
MTL ISP7000 Insulating Spacers
Attaches to the base of a DIN rail at either end or at intervals to isolate the IS earth from a structural earth
$35.80
In Stock
MTL ERB57 Earth Rail Mounting Bracket
Nickel-plated earth-rail bracket, straight or offset
$35.80
MTL ETL7000 Earth Terminal
Provides connection for routing the IS earth from the DIN rail to an appropriate plant earth
$25.30
In Stock
MTL IMB57 Insulating Mounting Block
One required at each end of a tagging strip/earth rail
$29.50

Application Notes

Here's how some of our customers used this product.

Protecting Sensor Circuits in a Hazardous Location

The Background: Our customer is a ceramics manufacturer seeking a means to protect sensor circuits in a hazardous area location.

The Problem: The customer utilizes methanol during the annealing process. As a highly flammable substance, the storage area for the methanol is classified as a hazardous area. As such, they must have intrinsically safe barriers for all sensor circuits that pass into the methanol storage area.

The Solution: We recommended MTL7700 Intrinsically Safe Barriers. The 7700 is a shunt-diode barrier that limits the amount of energy allowed to pass between safe and hazardous areas to a level that cannot ignite flammable atmospheres. They are DIN-rail mounted which provides quick and easy installation without the need for special hardware.

Part Number Price Available
MTL7706+
Show Configuration
Base Price
$117.00
Model
MTL7706+ Single channel for 'smart' 2-wire 4/20mA transmitters (+$150.00)
Reconfigure
$267.00 10
MTL7760AC
Show Configuration
Base Price
$117.00
Model
MTL7760AC For thermocouples and active ac & dc sensors (+$43.00)
Reconfigure
$160.00 10
MTL7787-
Show Configuration
Base Price
$117.00
Model
MTL7787- 28V, -ve, 300 ohm diode return for controller outputs, switches (+$43.00)
Reconfigure
$160.00 10
MTL7787+
Show Configuration
Base Price
$117.00
Model
MTL7787+ 28V, +ve, 300 ohm diode return for controller outputs, switches (+$43.00)
Reconfigure
$160.00 10

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3-5 business days". Click here to select options
