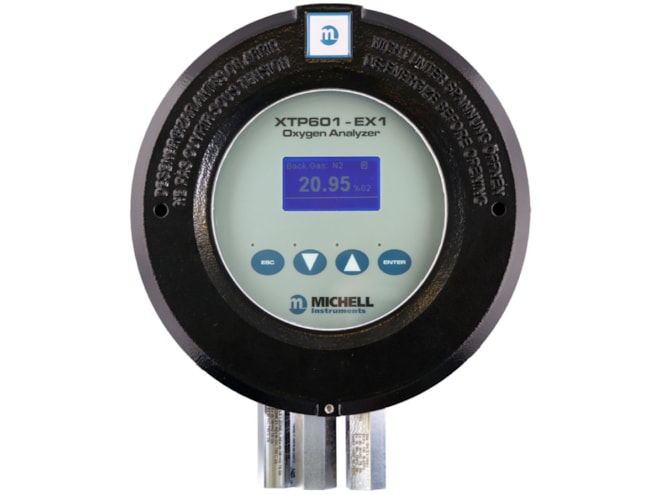

Michell Instruments XTP601 Oxygen Analyzer

Thermo-paramagnetic oxygen transmitter for safe or hazardous areas, used for measurements in biogas, methane, hydrogen, nitrogen or carbon dioxide . Learn more...

Starting at $6,325.00

View Company Reviews
Manufactured
Includes
Availability
  • Usually ships in 10-12 weeks
Product Manual Product Specs

Overview

Features

  • Available in 3 models:
    • General purpose analyzer
    • General purpose analyzer with flame arrestors
    • Hazardous area analyzer
  • ATEX, IECEx, CCSAUS, TC, TR & Ex hazardous area certified
  • Touch-screen display
  • Thermo-paramagnetic sensor
  • RS485 and two 4 to 20mA outputs
  • Accuracy 1% full scale
  • Zero range stability better than 0.25% of range per month
  • Ranges available: 0 to 0.5% up to 0 to 50% & 20, 80 or 90–100%
  • Backlit LCD display
  • Accuracy less than ±1% of span or ±0.02% O2
  • Meets the requirements of IEC61508 SIL 2

Description

The Michell Instruments XTP601 Oxygen Analyzer is a thermo-paramagnetic sensor that is a robust, linear and stable oxygen analyzer for measurements in gases such as hydrogen, nitrogen or carbon dioxide. The sensor is housed in an IP66 rugged casing, making it suitable for a wide range of applications. When supplied with flame arrestors, the analyzer becomes explosion-proof and suitable for use with flammable gases and/or installation in hazardous areas

The XTP601 has barometric pressure compensation fitted as standard and is ranged specifically to customer's needs to offer the best accuracy where it matters. The sensor in Michell's XTP601 analyzer largely eliminates thermistor drift associated with other comparable devices, improving the stability of the measurement. This allows longer calibration intervals and reduces both labor and consumable costs.

Applications for the XTP601 includes:

  • Monitoring inert blanketing gases for hydrocarbon processing
  • Inert gas for pharmaceutical or chemical industries
  • Biogas, waste, landfill and digester plants
  • Furnace gas control in steel industry
  • Catalyst regeneration
  • N2 generators
  • O2 generators
