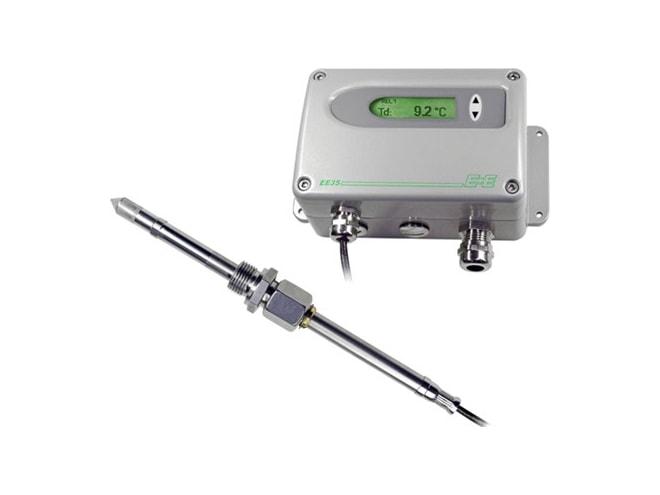

E+E EE35 Dew Point / Temperature Transmitter
Starting at $1,468.00

Usually ships in 4-6 weeks [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Dew point range: -76 to 140°F (-60 to 60°C)
  • Temp range: 32 to 140°F (0 to 60°C)
  • Integrated Auto-Calibration
  • Alarm output for dew point
  • Designed for industrial applications
  • Two freely configurable and scalable analog outputs
  • Cable lengths available in 3.2ft, 6.5ft, 16.4ft
  • 0 to 5/10V, 0/4-20mA outputs

The E+E EE35 Dew Point / Temperature Transmitter is ideal for accurate measurement of low dew point temperature in demanding applications such as drying processes or compressed air monitoring.

The EE35 provides high reliability and long term stability with the auto-calibration procedure in combination with the well proven E+E humidity sensors. The auto-calibration adjusts periodically the EE35 dew point transmitter without disturbing the industrial process, and leads to an accuracy of ± 2 °C (±3.6 °F) Td down to -60 °C (-76 °F) Td.

Two freely configurable and scalable analogue outputs are available for the measurement values dew point (Td), frost point (Tf) and temperature (T). An optional relay output provides an alarm signal when the dew point threshold set with a potentiometer is exceeded. The optional display and the associated MIN/MAX values allow for a quick status check in the field.

Applications for the EE35 include:

  • Industrial processes
  • Monitoring of air pressure pipelines
  • Warehouses
  • Drying processes
  • Paper industries
  • Chemical industries
  • E+E Ball Valve Set
    Choice of 1/2in NPT or G1/2in ISO ball valve for Oilport 30, EE35, EE36, or EE360 series probes
    $173.00
    E+E D05M / D05P Dispay and Cover
    Display for EE31, EE33, EE35 and EE36, comes with PC or metal cover
    $248.00
    E+E HA010103 Stainless Steel Sintered Filter
    Stainless steel sintered filter
    $37.00
    E+E HA010304 Interface Cable for PCB
    Interface Cable for PCB
    $57.00
    E+E HA010311 Interface Cable
    Interface cable for plug option C06
    $137.00
    E+E HA010203 Bracket for Rail Installation
    Bracket for installation onto mounting rails, 2 pieces necessary per device
    $13.00

    Applications

    This product can be used in the following applications:
