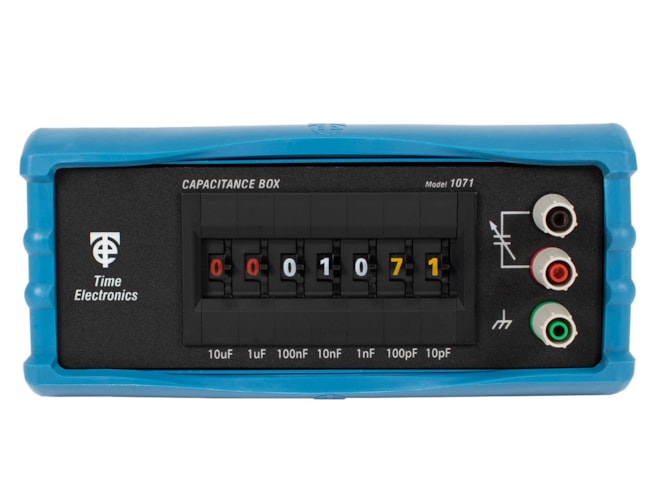

Time Electronics 1071 Decade Box

High accuracy capacitance decade boxes with seven decades ranging from 10pF to 100μF.

Features

  • Ranges: 10pF to 100µF
  • Accuracy: 1%
  • Resolution: 10pF steps (9 steps per decade)
  • Residual capacitance: Approximately 55pF
  • In-line read-out
  • Color coded digits: µF = Red, ηF = White, ρF = Yellow
  • Bi-polar working

What's in the Box

  • Protective cover (fitted)
  • User manual

The Time Electronics 1071 capacitance decade box offers high accuracy across several different ranges: from 10 ρF to 100 µF. Each of these ranges are measured within a 1% basic accuracy. The 7-digit thumbwheel switch enables simple and precise setting of the capacitance value. The 1071 is suitable for applications in industry and education.

Other features of the Time Electronics 1071 decade capacitance box include an in-line read-out and color coded digits. The Time Electronics 1071 decade capacitance box has three 4mm binding posts and a third terminal to enable the case to be connected to either output or earth. The case itself is constructed of metal to provide complete screening and has a residual capacitance is approximately 55 ρF.

The 1071 is compatible with 4mm shrouded plugs, as well as standard plugs, bare wires, and spade terminals.
