Fluke 9040 Phase Rotation Indicator



Not in stock. Usually ships in 1-2 weeks [?]

Need Help? Call a Temperature Engineer 1-800-884-4967

We're open Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET


  • 3 phase indication
  • Indication of phase rotation
  • Clear LCD display
  • Voltage range: 40-700 V
  • Frequency range: 15-400 Hz
  • IP 40 rated housing
  • Electrical safety rated EN 61010 and EN 61557-7
  • Overvoltage category: CAT III, 600 V and CAT IV, 300V
  • No battery required

What's in the Box

  • 3 self-retaining test probes (black)
  • Alligator clip
  • User manual

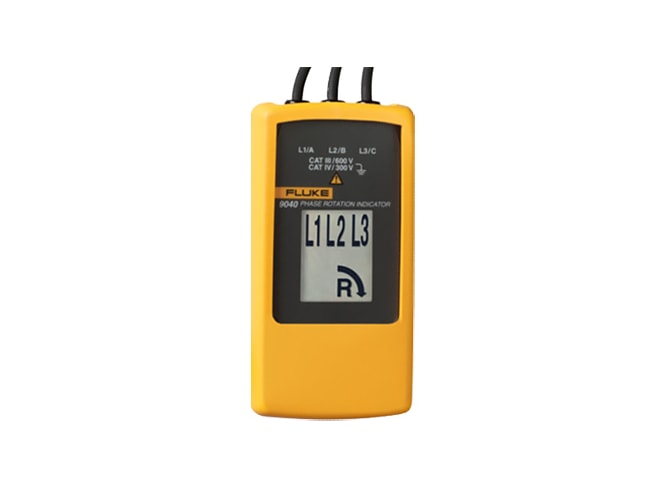

The Fluke 9040 phase rotation indicator has a high voltage capability for industrial applications making the 9040 effective for measuring phase rotation in all areas where three phase supplies are used to feed motors, drives and electrical systems. The Fluke 9040 is a rotary field indicator and can provide clear indication of the 3 phase via an LCD display and the phase rotation direction to determine correct connections. It allows rapid determination of phase sequence and has a voltage (up to 700 V) and frequency range suitable for commercial and industrial applications. The included test probes have a variable clamping range for safe contact, also in industrial sockets.

Fluke TLK290 Probe Set
Three flexible socket probes and 0.8in (20mm) alligator clip for use on motor and three phase sockets
Fluke TLK291 Fused Test Probe Set
FF rated, 500mA, 1000V, and 50kA fuse for use with 4mm shrouded test leads
