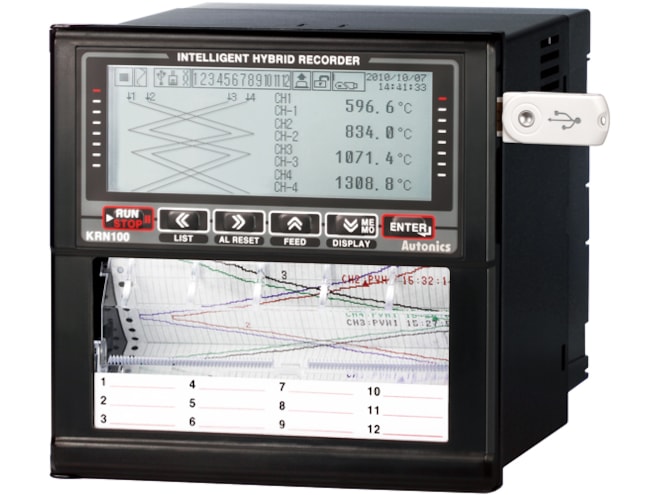

Autonics KRN100 Recorder
2-in-1 hybrid type paper/paperless recorder simultaneously displays measured values prints out on 100mm thermal paper.
Overview
Features
- Combined functions of paper recorder and paperless recorder
- Enables to print the saved data of inner memory when running out of recording paper(data logger function)
- Enables to set parameters with USB, RS485, Ethernet communication
- High legibility and setting convenient by graph LCD
- 100 mm paper record (selectable 6 kinds of record color)
- Supports inner memory and USB memory data backup (storage)
- Supports several input up to 12 channels with slot type input cards
- Enables to select several option cards with slot type output cards
- Space saving for installation with compact design (rear length: 168 mm)
- Supports total 27 kinds of input types
- Enables to order several type input cards (weight, voltage, current, frequency, potential
Description
The Autonics KRN100 series recorder is a 2-in-1 hybrid type paper/paperless recorder that simultaneously displays measured values of temperature, humidity, flow, level and pressure on LCD panel and prints out on thermal paper. Measured data can be stored in USB flash drives and data logger function allows data backup from internal memory preventing data loss in case of paper shortage. Also, user convenience was enhanced with various options including parameter setting via USB configuration, input/output card slots supporting up to 12 channels and optional cards with various functions.
