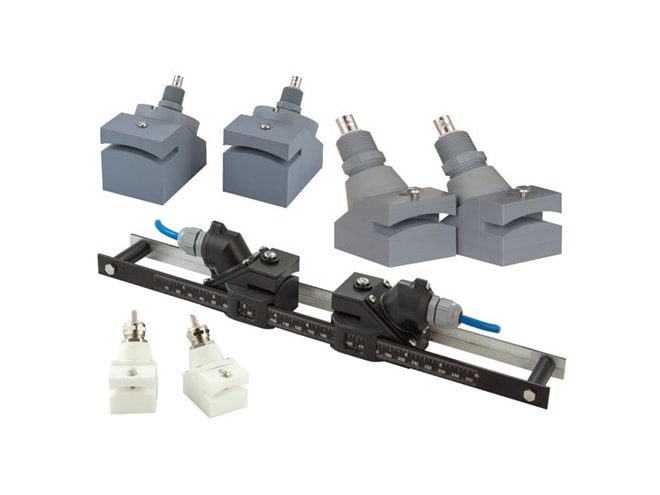

Dynasonics DTT Transducers for Standard/Large Pipes
Starting at $695.00

Some models in stock. View available part numbers.

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • For general purpose, submersible or hazardous area applications
  • Standard (194 and 250ºF) and High Temperature (350ºF) models available
  • 500 kHz and 1.0 MHz
  • Includes mounting hardware and silicone acoustic couplant

This product is an accessory for the following products:

Dynasonics TFX Ultra Ultrasonic Flow Meter
Clamp-on ultrasonic flow and energy meters for liquids
$2,240.00
In Stock
Dynasonics TFXL Series Ultrasonic Flow Meter
Ultrasonic flow meter for liquids with small amounts of suspended solids or aeration, replaces the YD50-C
$1,670.00
In Stock

The DTT series transducers are non-invasive, clamp-on devices that are placed on the outside of a pipe. Proprietary circuitry allows this product to be used on both metal and plastic pipes containing relatively clean liquids as well as those with suspended solids or entrained gases. Models are available for general purpose, submersible or hazardous area applications.

Operating Principle

Each transducer utilizes a piezoelectric crystal to transmit ultrasound through a pipe wall and into a flowing liquid. The ultrasonic signal is reflected from suspended solids or entrained gases drawn out of solution by hydraulic disturbances such as a 90° elbow. (This unit can measure the flow rate of clean liquids by mounting the transducers 1 to 3 pipe diameters downstream of the 90° elbow.) A second transducer receives the reflected sound and the TFXL series meter's circuitry compares the transmitted and received frequencies. If the liquid is moving, a frequency (phase/Doppler) shift occurs which is proportional to fluid velocity.

Dynasonics Mounting Rail Assembly
10-inch scaled mounting rail assembly for DTTR transducers
$85.00
In Stock
Dynasonics Mounting Track Assembly
10- or 16-inch scaled mounting track assembly for DTTN transducers
$250.00
Part Number Price Available
DTTR-020-N000-N
Show Configuration
Base Price
$695.00
Transducer Application
General purpose
Transducer Type
Standard pipe (1 MHz), 250°F max
Cable Length
20 feet
Conduit Type
None, bare Twinax cable
Conduit Length
None- Conduit not selected
Reconfigure
$695.00 2
DTTN-020-A020-F
Show Configuration
Base Price
$695.00
Transducer Application
Hazardous Location (Class 1, Division 1, Groups C and D) (+$680.00)
Transducer Type
Standard pipe (1 MHz), 194°F max
Cable Length
20 feet
Conduit Type
Flexible armored (+$95.00)
Conduit Length
20 feet
Reconfigure
$1,470.00 1

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 2-3 weeks". Click here to select options
