FLK-TIX520 60HZ

Fluke

Usually ships in 2-3 weeks [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Interested in a FREE demo? Call 1-800-884-4967 or complete this form to submit your request.

Features

  • Premium Image Quality
  • Temperature range: -20 to 850 °C (-4 to 1562 °F)
  • Accuracy: ±2°C or 2%
  • Spatial resolution: 1.31 mRad
  • Resolution: 320 x 240 (76,800 pixels) and 640 x 480 (307,200 pixels) with SuperResolution Mode
  • Filter mode (NETD improvement): less than 0.04 °C at 30 °C target temp (40 mK)
  • Minimum focus distance: 15 cm
  • Field of view: 24° H x 17° V
  • Frame rate: 60 Hz
  • Get tough shots from any angle with a 180° rotating lens
  • 5.7 inch responsive touchscreen LCD
  • LaserSharp® Auto Focus uses a built-in laser distance meter that calculates and displays the distance to your designated target with pinpoint accuracy
  • 2x, 4x digital zoom
  • Streaming video via USB or WiFi
  • IR-Fusion® technology
  • Voice and text annotation
  • Removable micro SD memory card, on-board flash memory, save-to-USB capability, direct download via USB-to-PC connection
  • Connect to a large selection of wireless test and measurement tools with Fluke Connect™

What's in the Box

  • Standard infrared lens
  • AC power supply & battery charger
  • 2 Lithium ion batteries
  • USB cable
  • HDMI video cable
  • Rugged, hard carrying case
  • Adjustable neck and hand strap
  • Bluetooth headset
  • Warranty registration card
  • Calibration certificate
  • Flash drive with product manuals
  • SmartViewIR software

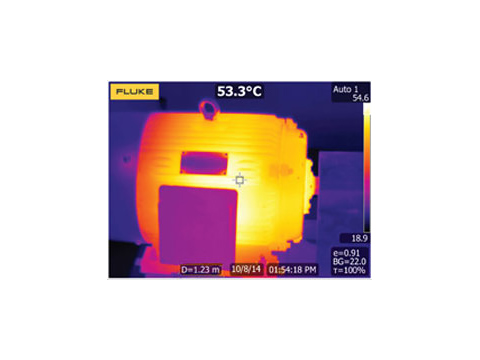

The Fluke TiX520 Infrared Camera is a professional-level thermal imager loaded with all the features needed to do the job well. The TiX520 offers premium image quality, a 180° degree rotating lens to get tough shots from any angle, LaserSharp autofocus which uses a built-in laser distance meter to focus with pinpoint accuracy, Fluke Connect which offers Bluetooth connection to a large selection of wireless test and measurement tools, and a range of accessories to customize your imager for any task.

The Fluke TiX520 is part of the Fluke Expert Series family which offers the most flexibility of the entire Fluke infrared camera portfolio to capture spectacular images close up or from a distance. The Tix520 has a temperature range of -20 to 850 °C (-4 to 1562 °F) with a basic accuracy of ±2°C or 2%. The imager has a 24° H x 17° V field of view and a resolution of 320 x 240 (76,800 pixels) which can be enhanced to 640 x 480 (307,200 pixels) with SuperResolution mode.

Images captured by the TiX520 are displayed on the large, 5.7 inch responsive touchscreen LCD. Voice and text annotations are possible. There are extensive memory options with the TiX520: a removable micro SD memory card, on-board flash memory, save-to-USB capability, or direct download via USB-to-PC connection. Streaming video is supported via USB or WiFi.

Cables

Fluke HDMI Cable
HDMI cable for the Fluke TiX500, TiX520 and TiX560 series infrared cameras
$109.99

Software

Fluke Connect Measurements Android App
Wireless cloud-based program that communicates data from your testing tool to a mobile device
$0.00
Fluke Connect Measurements iOS App
Wireless cloud-based program that communicates data from your testing tool to a mobile device
$0.00

Holsters/Straps/Harnesses

Fluke TiX5xx Neckstrap
Neckstrap for the Fluke TiX500, TiX520 and TiX560 series infrared cameras
$39.99
Fluke Handstrap
Handstrap for Fluke TiX520, TiX560, TiX500 Expert Series Infrared Cameras
$19.99

Batteries/Chargers

Fluke Smart Battery Pack
Smart Battery Pack for Fluke TiX520 and TiX560 Expert Series Infrared Cameras
$139.99
In Stock

Accessories

Please consider these optional accessories.

Fluke Bluetooth Headset
Bluetooth headset for Fluke Infrared Cameras
$79.99
Fluke Lens Cap
Lens Cap for Fluke TiX520, TiX560, TiX500 Expert Series Infrared Cameras
$59.99
Fluke FLK-LNS Infrared Lenses
Wide angle or 2X telephoto IR lens
$1,349.99
In Stock
Fluke 4X Telephoto IR Lens
Four times magnification smart lens with 6.0°H x 4.5°V field of view and 5ft (1.5m) minimum focus distance
$6,499.99
Fluke 25 Micron Macro Infrared Lens
Smart lens with 36.1°H x 27.1°V field of view and 0.3 to 0.6in (8 to 14mm) working distance, optimal at 0.4in (10mm)
$4,599.99
Fluke Professional Tool Backpack
Durable high-quality polyester, injection molded plastic bottom base, six storage compartments
$199.99
