$83.50

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967
Mo-Th 8am to 5:30pm. Fr 8am to 5pm ET

Features

  • Range:
    • Non-contact (RPM): 2.5 to 99,999 RPM
    • Contact (RPM): 0.5 to 19,999 RPM
    • Surface Speed (m/min): 0.05 to 1999.9 m/min.
  • Accuracy: ±(0.05% + 1 digit)
  • Resolution:
    • Non-contact (RPM): 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (1000 to 99,999 RPM)
    • Contact (RPM): 0.1 RPM (0.5 to 999.9 RPM), 1 RPM (1000 to 19,999 RPM)
    • Surface Speed (m/min): 0.01 m/min (0.05 to 99.99 m/min), 0.1 m/min (100.0 to 1999.9 m/min)
  • Non-contact Measuring Distance Range: 2 to 20" (5 to 50 cm)
  • Backlit LCD; 5 digits, 7 segments, 0.7"
  • Sampling Time: 0.8 s
  • (4) 1.5 V AA alkaline batteries, user replaceable
  • CE approved, RoHS compliant

What's in the Box

  • 3 contact rotational heads
  • Contact surface wheel
  • (4) 1.5 V AA alkaline batteries
  • Protective carrying case

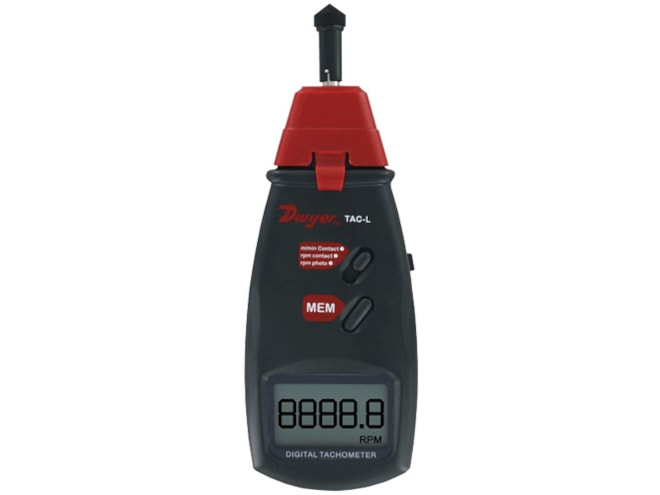

The Dwyer TAC-L portable digital tachometer measures rotational speed either by contacting a rotatable head to the shaft of the object, or using photo sensor to detect the reflections from the laser. The laser target can record from a distance of up to 20 inches and gives a more accurate measurement than LED targeting. Model TAC-L includes a large LCD with a backlight for use in dark areas. This tachometer is made of a strong, lightweight ABS plastic housing, which is designed to comfortably fit in the hand of the user.

Dwyer TAC-5 Reflective Tape
Reflective tape for use with non-contact tachometers, 5' roll
$26.50

Applications

This product can be used in the following applications:
