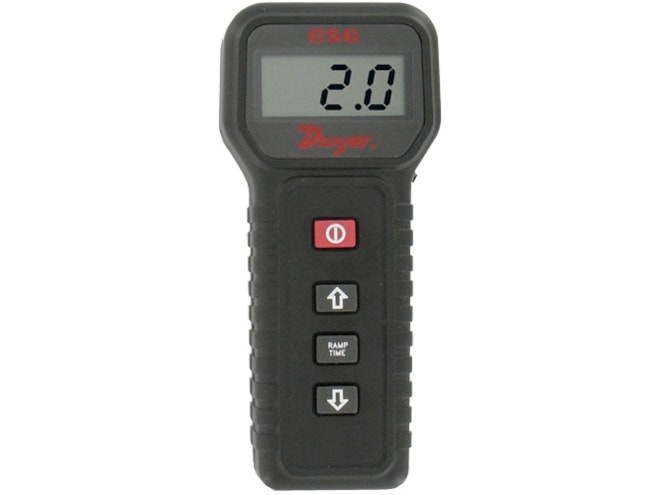

Dwyer CSG Signal Generator

Current and voltage signal generator for troubleshooting transmitters, transducers, motors, and actuators .

Call for pricing

View Company Reviews
Part Number
  • CSG
Manufactured
Includes
Availability
  • Call for availability

Features

  • Impedance
    • Voltage: 1000Ω min
    • Current: 300Ω max
  • Output: 0 to 20 mA (1 mA increments); 0-10 VDC (1 VDC increments)
  • Resolution:1 mA (current); 1 VDC (voltage)
  • Large Backlit Display
  • Timed Ramp Function
  • Process Display Configuration
  • Transmitter Calibration
  • Ramping Time Intervals: 1 to 20 sec (1 sec increments)
  • Auto Power Off
  • 9 V alkaline battery, user replaceable or 120 VAC
  • Electrical Connections: 6 ft (1.8 m) with alligator clips

What's in the Box

  • Test leads with alligator clips
  • 9 V alkaline battery
  • 120 VAC plug-in power supply
  • Carrying case
  • Instruction manual

The Dwyer CSG current and voltage signal generator is an ideal tool for troubleshooting transmitters, transducers, motors, and actuators. The unit generates a 0 to 10 VDC signal in increments of 1 volt or a 0 to 20 mA signal in increments of 1 mA. The Model CSG features a large LCD display with a blue backlight for use in dimly lit areas. The Model CSG continuously ramps the output using user selected minimum, maximum, and ramp interval timing parameters.

This product can be used in the following applications:
