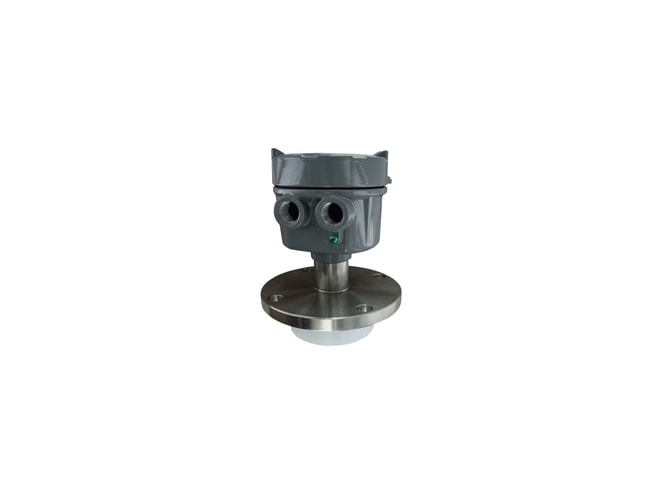

Proximity FCLS Level Switch

Features no probe design for installation where space is constrained or where material flow or build-up would damage a probe.

$958.00

View Company Reviews
Part Number
  • FCLS-01
Manufactured
Includes
Availability
  • Usually ships in 4-6 business days

Features

  • For use with compatible liquids, powder, and bulk materials
  • 304 stainless steel wetted materials
  • Process Temperature Limits: -4 to 176°F (-20 to 80°C)
  • Pressure Limit: 285 psi (19.7 bar)
  • IP65 rated enclosure
  • SPDT switch
  • Screw terminal connection
  • Conduit Connection: 2 x 1/2" female NPT
  • Power Requirements: 110 or 220 VAC
  • Process Connection: 2.5" - x 5 kg/cm2 JIS flange
  • Side mount orientation
  • Adjustable Sensitivity: 1 to 20 pF

The Proximity FCLS Flush Capacitance Level Switch is ideal for level measurement of liquids and bulk solids to trigger an alarm or close a filler inlet. No probe design allows for installation where space is constrained or where material flow or material build up would damage a probe. With no moving parts, this level switch assures no jams, no wear, nothing to break, and no maintenance. Comes standard with IP65 housing with a maximum pressure limit of 285 psi (19.7 bar).

This product can be used in the following applications:
