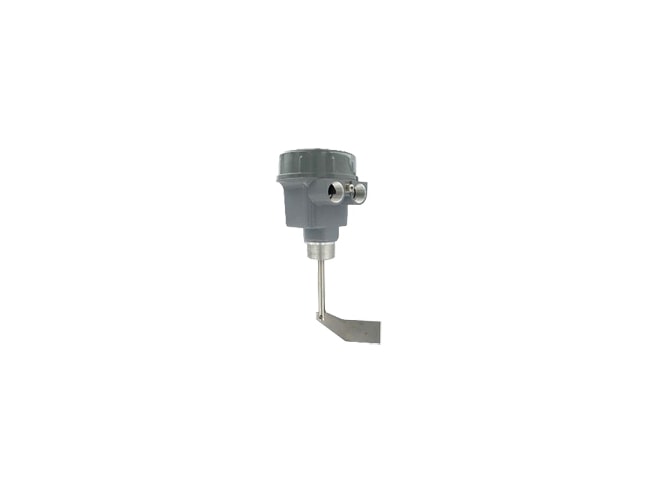

Proximity PLS2 Level Switch
Starting at $224.00

Not in stock. Usually ships in 4-6 business days [?]

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • For use with dry powder or bulk materials
  • Wetted Materials:
    • Paddle: 304 SS
    • Exposed shaft: 303 SS
    • Shaft seal: NBR
    • Process connection: Aluminum
  • 3 sensitivity settings
  • Top or side mountable
  • Brushless synchronous motor: Assures long term reliability and efficiency
  • Motor shuts off when paddle stalls
  • Process Temperature Limits: -13 to 176°F (-25 to 80°C)
  • Pressure Limits: 11.6 psi (0.8 bar)
  • 115 VAC, 230 VAC or 24 VDC power supply
  • Aluminum, powder coated NEMA 4 (IP66) enclosure
  • SPDT micro switch
  • Sensitivity: Minimum material density of 6 lb/ft3 (96 kg/m3)
  • Permitted Mechanical Loading: Standard shaft: 67 lbf max; Optional extension: 22 lbf
  • CE, FM approved

What's in the Box

  • Single sided non-spring paddle

The Proximity PLS2 is an electromechanical level switch designed for level monitoring of bulk materials. The rotating measuring vane is driven by a brushless synchronous motor at one revolution per minute. As product builds up, the paddle rotation is impeded and the resulting motor torque activates the output switch and stops the motor. A spring mechanism reactivates the motor and returns the switch to normal state when the material no longer impedes the paddle rotation. A torque adjusting mechanism eliminates the need for different sized paddles. The PLS2 is designed with the industry standard 1-1/4" male NPT connection and unit can be side or top mounted.

Proximity PLS2 Paddles
Single or double sided spring paddles for Proximity PLS2 level switches
$89.50
Proximity PLS2 Shaft Extension
Shaft extension for Proximity PLS2 level switches
$86.50

Applications

This product can be used in the following applications:
