$105.00
  • S-FS-CVIA
  • Usually ships in 2-3 weeks

Overview

Features

  • 2 input channels of 0-20mA and/or 0-20 VDC
  • Accuracy: ±0.25% FS over range selected from 50mV to FS
  • For use in Indoor environments
  • A/D accuracy: ±0.05%
  • A/D drift: 5 ppm/°C
  • Resolution: 12-bit

Description

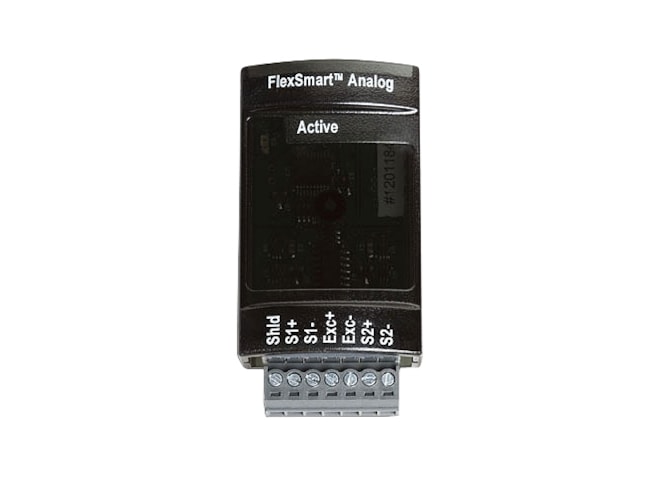

The HOBO S-FS-CVIA FlexSmart Analog Module is for use with the H22-001 Energy Logger handles two single-ended input channels with user configurable ranges of 0 to 20mA DC or 0 to 20 V DC which is suitable for 2.5, 5, and 10 volt sensors. Field wiring is 2 or 3 wire via screw terminals.
