Starting at $575.00

Some models in stock. View available part numbers.

Need Help? Call 1-800-884-4967 8:00am to 5:30pm ET

Features

  • Flow ranges from 0.13 GPH to 317 GPM
  • Up to ±0.5% accuracy (±1.0% for MX06F, MX09F)
  • Cast aluminum meter body
  • Bearingless PPS Rotors
  • Viton seals
  • Temperature Range: -40 to 176˚F
  • Optional 12 or 17mm LCD display
  • Output options: 4-20mA (passive), Transistor, Pulse Output, Alarm
  • BSP, NPT or flanged process connections
  • CE compliant
  • 2 Year Warranty
  • Robust Design
  • Suitable for use in the harshest outdoor environments

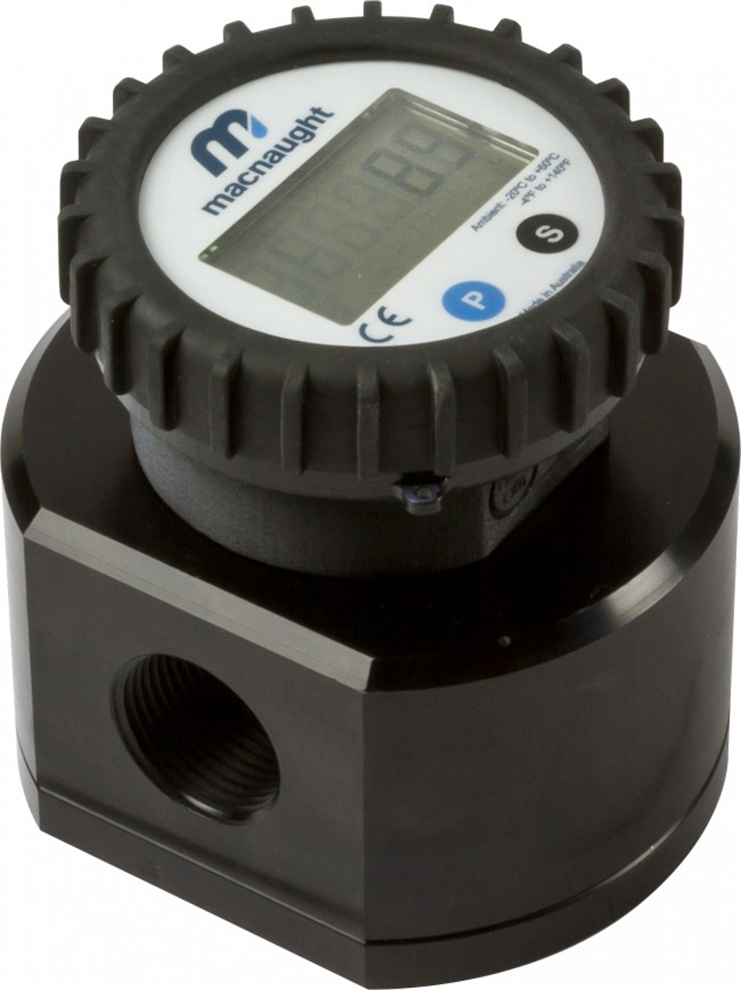

Macnaught MX Series fuel and oil flow meters are positive displacement oval gear flowmeters that are optimized for fuel and oil measurement applications.

Macnaught Fuel and Oil meters are constructed utilizing a robust cast aluminum body suitable for use in the harshest environments. Their bearing-less PTFE/PPS rotors provide exceptionally low pressure drop and can even be used in gravity fed applications. This unique rotor design ensures minimal wear resulting in many years of reliable service. This approach has proven over time to provide consistently accurate flow measurement that is not affected by variations in temperature, viscosity, or pressure.

Another benefit of Macnaught's unique rotor design is simplicity of repair. With only 2 moving parts, the meters are simple to repair, require minimal repair parts stock, and can even be repaired inline, resulting in less downtime.

Oval Gear flowmeters are ideally suited to applications requiring accurate dispense quantities. Measurement of very low flow rates, pulsating flow, small batch sizes, viscous products, and non-conductive liquids are all ideal uses for oval gear meters. Because these meters don't require flow conditioning, no straight piping runs are required, so they can be used in installations where space is limited without effecting performance.

With a range of display, output and process connection options, Macnaught MX Series fuel and oil flow meters are the perfect choice for a variety of applications including:

  • Service and fueling trucks
  • Fuel depots
  • Portable fueling systems
  • Bio-diesel blending and production
  • Lubricant blending and dispensing
  • Hydraulic fluid dispensing and test stands
  • Boiler and generator fuel consumption
  • Fuel consumption for mining, construction, and military vehicles
  • Bitumen/asphalt production
Macnaught MX Series Pulsers
Blind pulse outputs compatible with all Macnaught MX Series flow meters
$75.00
In Stock
Macnaught MX Series Local Flow Displays
Meter mounted digital registers with a 12 or 17mm display
$564.00
Macnaught ER Series Remote Display
Remote mounted 17mm LCD for Macnaught MX series flow meters
$1,188.00
Macnaught PR Series Remote Display
Remote mounted 12mm LCD for Macnaught MX series flow meters with reed switch input
$654.00
Macnaught MX Series Flange Kits
Flange kits for Macnaught MX Series flow meters
$228.00
Macnaught Strainer / Air Eliminator Combo
Aluminum strainer / air eliminator combo for Macnaught MX series flow meters
$3,048.00
Macnaught Strainers
Mesh Y-strainers for Macnaught MX series flow meters
$62.00
Macnaught Test Certificates
Single or 3-point test certificates for Macnaught MX series flow meters
$145.00

Application Notes

Here's how some of our customers used this product.

Mineral Oil Measurement

The Background: Our customer is an industrial facility that needs to measure the flow of mineral oil.

The Problem: Mineral oil is not compatible with all flow meters. Additionally, there is no external power available.

The Solution: We recommended the Macnaught MX Series fuel and oil flow meters. The MX Series is a rugged, high accuracy, positive displacement meter optimized for oils.

Monitoring Fuel Usage in a Multiple Boiler System

The Background: Our customer is a large industrial facility that has three boilers plumbed to the same fuel tank. They had been noticing that their fuel usage seemed abnormally high but were unable to determine what was causing it. They seek a way to determine which boiler is not performing efficiently.

The Problem: The manner in which the system is plumbed doesn’t allow them to see the fuel usage of the individual boilers which could help them determine which isn’t performing well.

The Solution: We suggested purchasing three of the Macnaught MX positive displacement flow meter so that the customer could monitor each of the supply lines. In this case there wasn't a return line, but if that had been the case we could have sold six meters and three displays that would have subtracted the return from the supply. They were quickly able to determine which boiler system wasn't performing well and make repairs. They are now able to keep track of how much each system uses each month.

Part Number Price Available
MX25F-2SA
Show Configuration
Base Price
$575.00
Meter Size
1" (1.6 to 32 GPM) (+$586.00)
Process Connection
Threaded NPT (+$480.00)
Output
Standard: 1x Reed / 1x Hall (max temp 80˚C)
Reconfigure
$1,161.00 5

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 1-2 weeks". Click here to select options
